Hrb Flexographic 4 Color Printing Rotary Die Cutting Carton Box Machine;
HRB PACK 1224 FLEXO PRINTER SLOTTER DIE CUTTER MACHINE HRB-1224 LEAD EDGE FEEDER PRINTER SLOTTER Wallboard thickness 60mmMax Machine Speed (pcs/min) 180Max. Feeding Size (mm) 1200*2400Min. Feeding Size (mm) 350x650Skip-feeding Size (mm) 1400*2400Standard Plate Thickness (mm) 3.9Max printing ......
Send Inquiry
Product Description

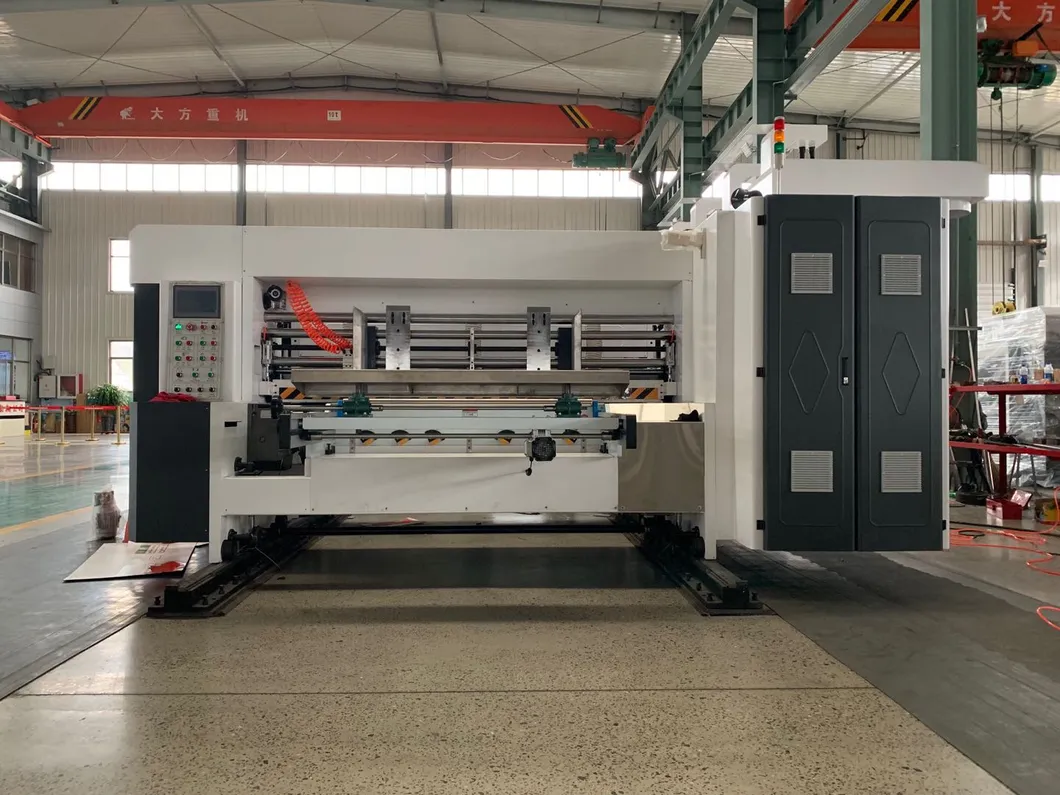

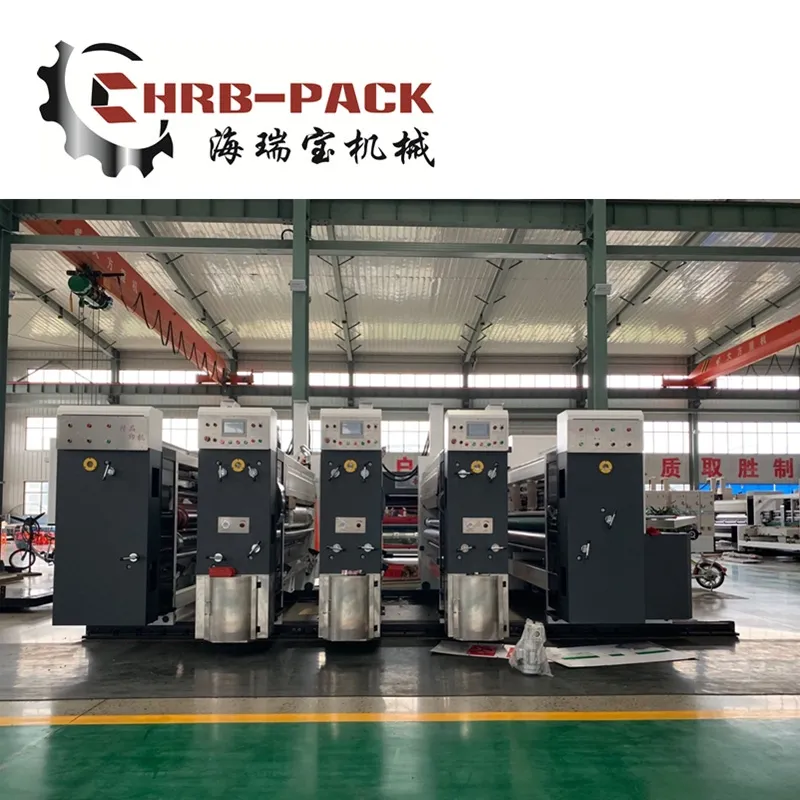

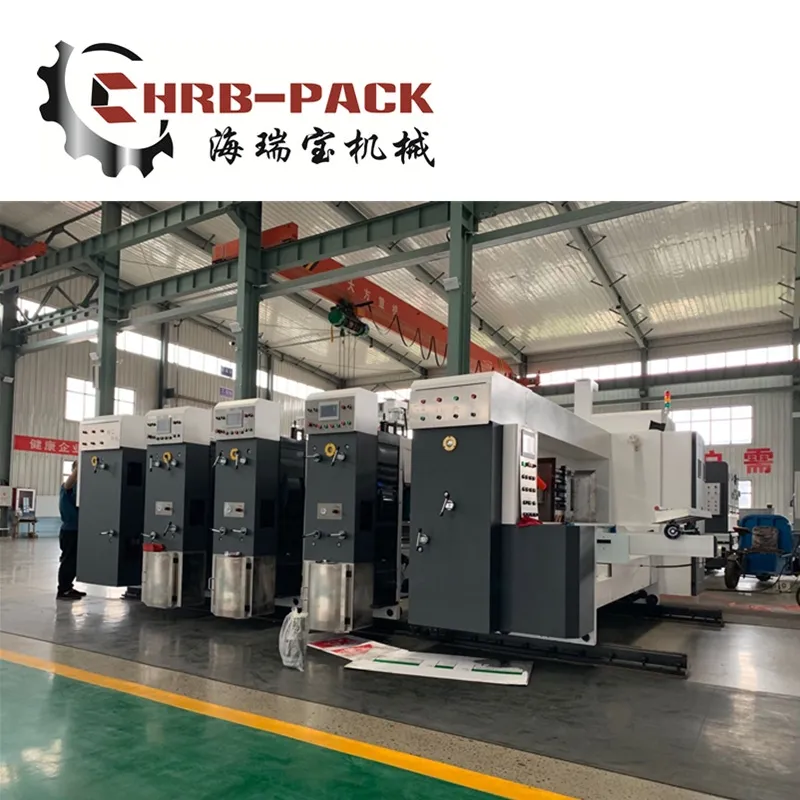

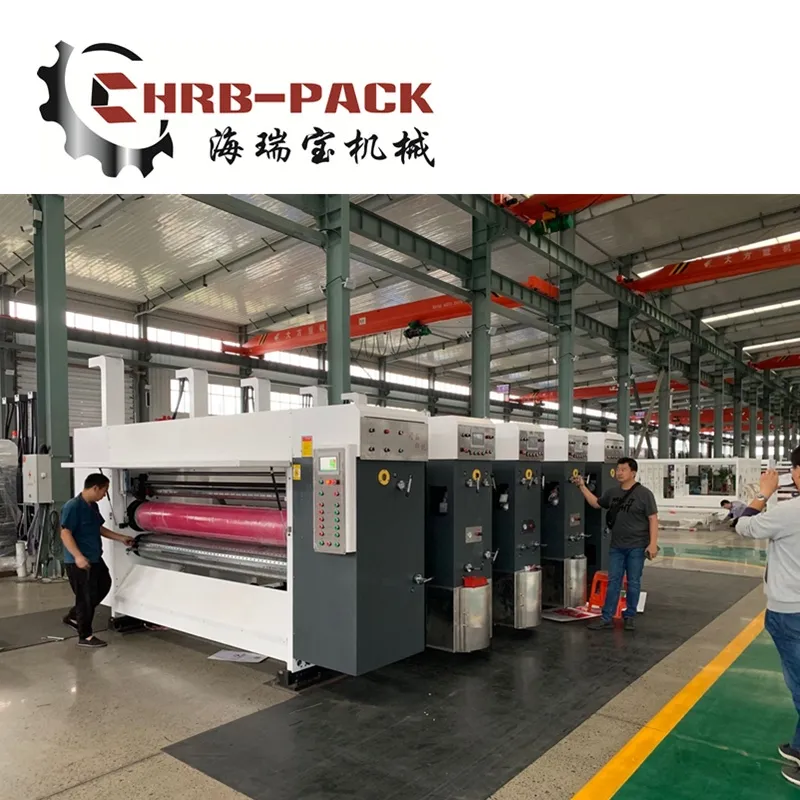

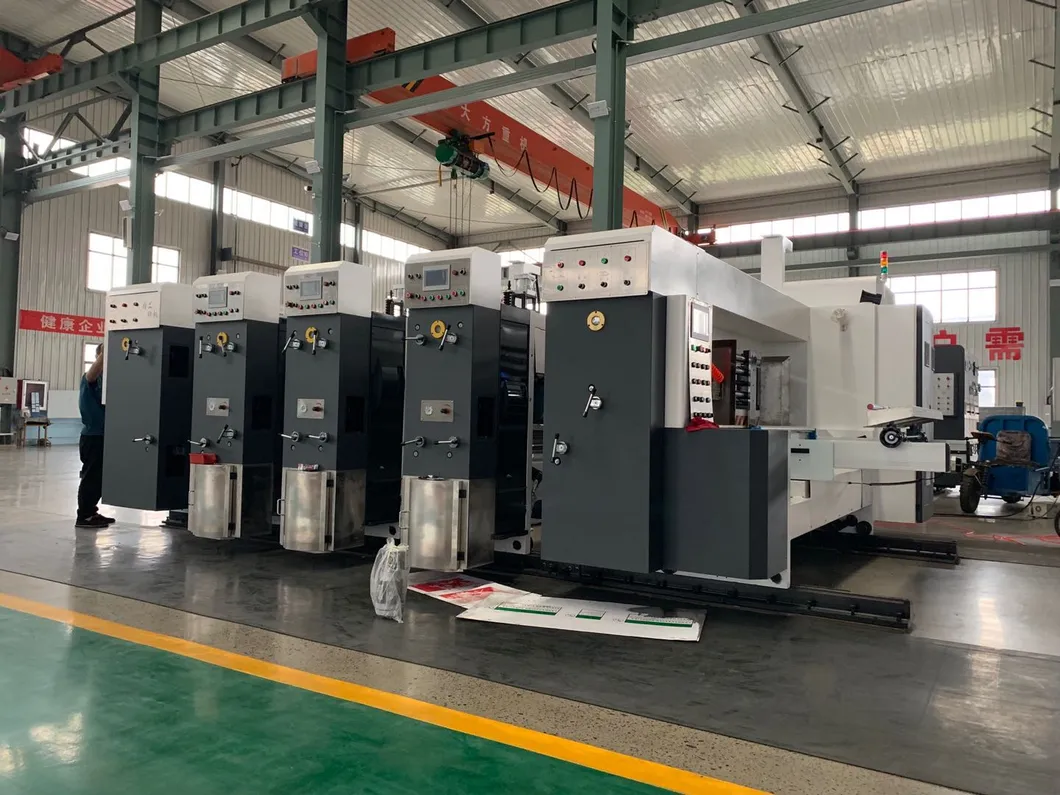

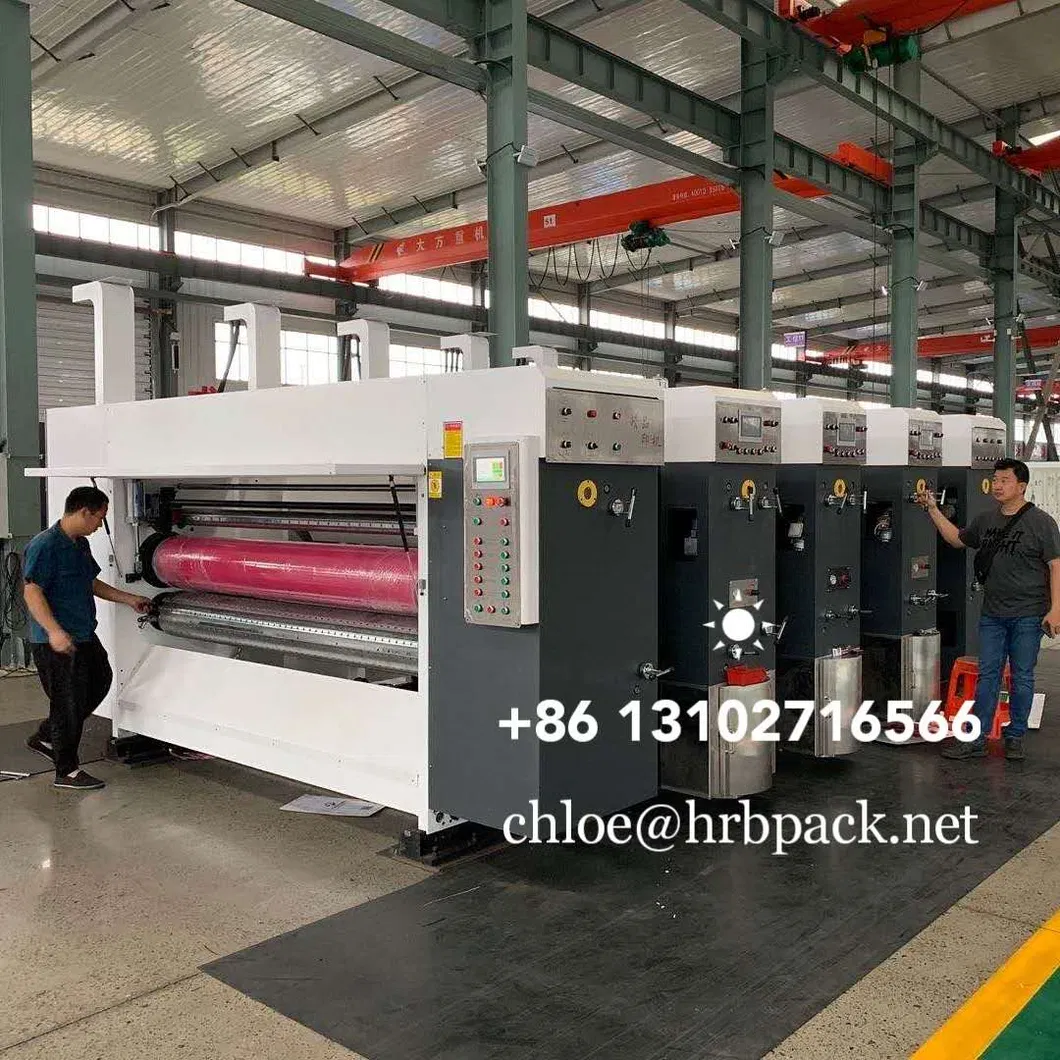

HRB PACK 1224 FLEXO PRINTER SLOTTER DIE CUTTER MACHINE
HRB-1224 LEAD EDGE FEEDER PRINTER SLOTTER | |
| Wallboard thickness | 60mm |
| Max Machine Speed (pcs/min) | 180 |
| Max. Feeding Size (mm) | 1200*2400 |
| Min. Feeding Size (mm) | 350x650 |
| Skip-feeding Size (mm) | 1400*2400 |
| Standard Plate Thickness (mm) | 3.9 |
| Max printing size(mm) | 1200*2200 |
| Min. slotter distance POSITIVE | 160X160X160X160 |
| Min. slotter distance NEGATIVE | 290X85X290X85 |
| Max slotter depth (mm) | 300 |
| Print precision (mm) | ±0.3 |
| Slot precision (mm) | ±1.0 |
| Die-cut precision (mm) | ±1.0 |
| Suitable Cardboard Thickness (mm) | 2 - 11 |
Lead edge feeding machine
1. 7.5KW high-pressure centrifugal fans
2. Left and right side baffle position electrically adjustable
3. Install 7" touch screen
4. Double Dust-removal System

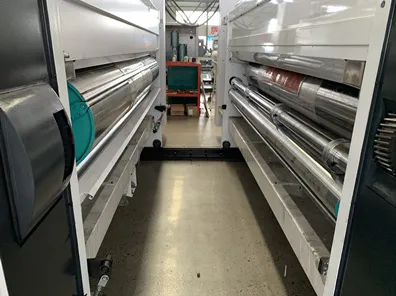

Printing machine:
1. Ratchet Hanging Plate
2. printing line:180-300line
3. Haili anilox roll
4. JIZHOU rubber roll
5. pneumatic ink supply, automatic ink circulation.
Rotary Die-cutting machine
- Rubber roller mechanical spiral commutation 40mm move about the horizontal structure
- Die-cutter phase, computer, and electric digital control
- Horizontal phase, computer, and the electric digital control, range ±5mm
- Rubber roller and die roller gap use a computer and the electric digital control,
- Adjust the transfer roller use computer and the electric digital control
Welcome to call me, printer machine size can be customized for customer
HRB PACK GROUP CO., LTD
Chloe
