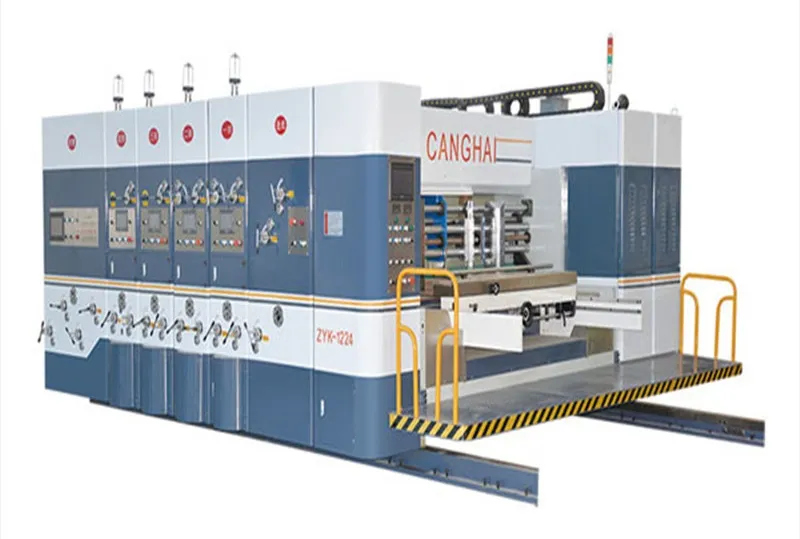

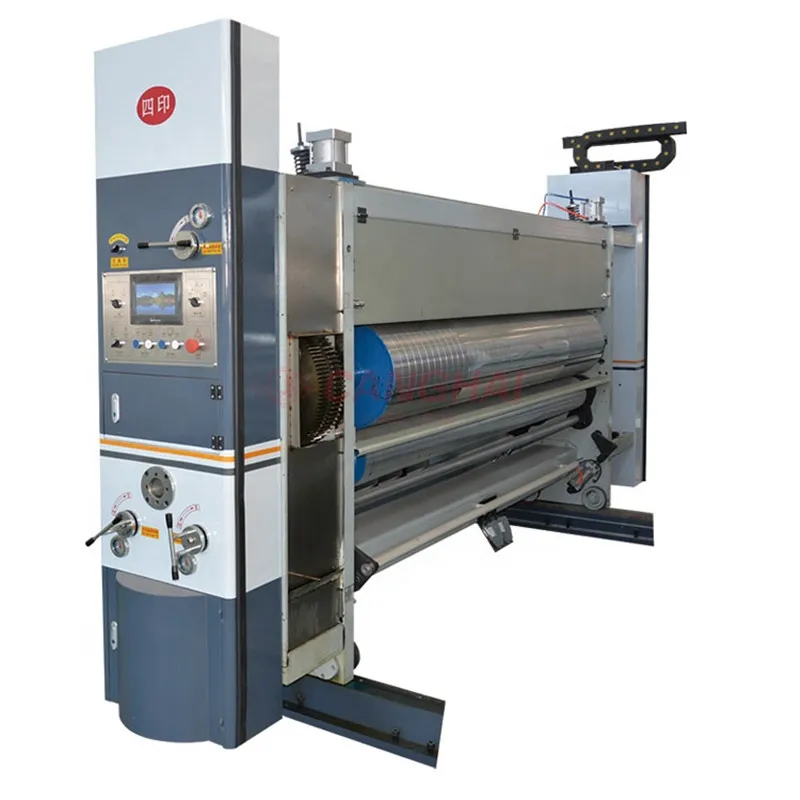

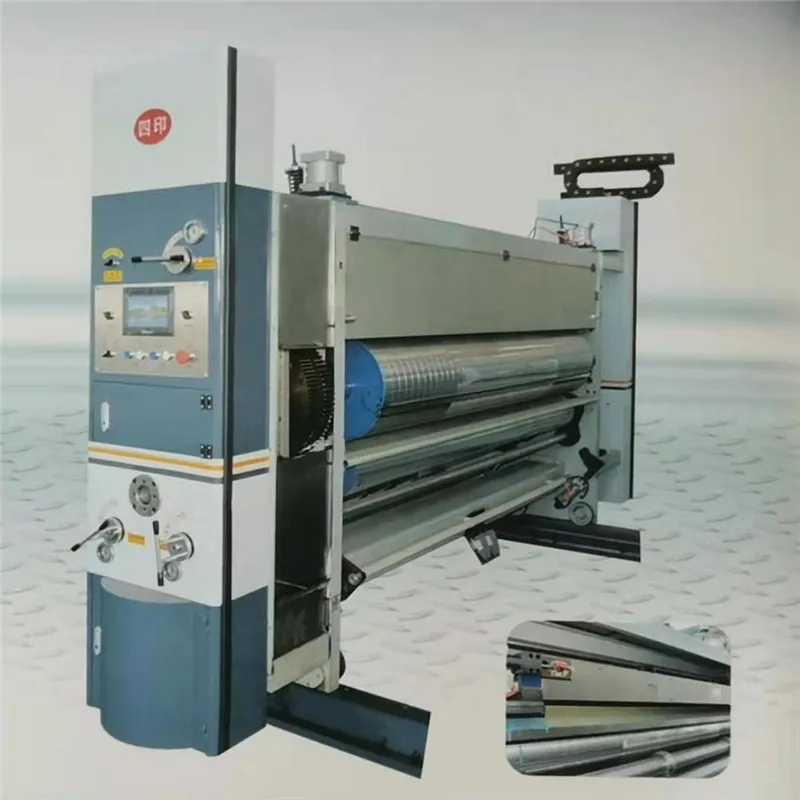

1428 Auto High Speed Flexo 4 Color Printer Machine
Model ZYKM-1428 high speed printing slotting die cutting machine with two-side protection coversProduct introduction:The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. It is Quick order change and easy operation.I......
Send Inquiry
Product Description
Model ZYKM-1428 high speed printing slotting die cutting machine with two-side protection covers
Product introduction:
The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. It is Quick order change and easy operation.
Imported PLC, touch screen multi-function control. Can store frequently use orders to speed up the order change operation.
Choose high-quality materials and accessories.
All rollers are chrome-plated to enhance the hardness.
Features of water-based ink printing machine
The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. It is Quick order change and easy operation.
Imported PLC, touch screen multi-function control. Can store frequently used orders to speed up the order change operation.
Choose high-quality materials and accessories.
All rollers are chrome-plated to enhance the hardness.
The transmission adopts precision grinded gear made of alloy steel and spray-type circulating lubrication system.
Use keyless continuous ring to reduce center wear, enlarge virtual position, and maintain long-term printing registration.
Adopt the hanging plate structure, automatic reset and quick change of orders.
Each unit is equipped with emergency stop switch to protect and control safety.
The gap adjustment adopts self-locking adjustment device, which is easy to operate.
The electrical components, main bearing, pneumatic control components, etc. are made by international famous manufacturers.
Stacking Department
The delivery system can be controlled automatically and manually.
The paper receiving arm drive belt can adjust the belt tightness separately, and the number of paper receiving arms can be selected at will.
The bed is driven by powerful chains.
The stack height is 1600mm.
The bed lifting drive motor is equipped with a brake function, so that the bed can maintain a fixed position without sliding.
Pneumatic supporting board auxiliary circulation paper receiving device.
The position of the rear baffle is adjusted manually.
The flat wrinkled belt prevents the cardboard from sliding down.
Paper feeding department
The leading edge paper feeding system, frequency conversion to adjust the air volume, paper feeding is accurate and stable.
Double-row paper feeding roller mode, front feeding and upper roller quick-change mechanism, covered with wear-resistant rubber, and equipped with spring adjustment function, which can prevent the deformation of the cardboard and ensure the accuracy of paper feeding.
Dust removal brush and dust suction device to remove paper scraps on the cardboard surface.
The touch screen displays the production speed and production quantity.
The paper feeding gap is adjusted manually.
Printing Department
The printing roller and embossing roller are made of high-quality steel with ground surface and hard chrome plating. Dynamic and static balance correction, stable operation.
Adopting plate hanging mechanism, easy and fast installation.
The loading and unloading of the printing plate is equipped with a foot switch or operation surface to control the forward and reverse rotation, which is fast and convenient.
The paper feeding system is equipped with an automatic lifting anilox roller. When feeding paper, the anilox roller automatically descends to contact the printing plate. When the paper feeding stops, the anilox roller automatically rises and separates from the printing plate.
The phase adopts an electromagnetic brake fixing device, which is intelligently reset to zero, and can be quickly reset in dynamic and static conditions.
The printing phase adopts PLC touch screen control and electric digital 360 degree adjustment.
The paper guide roller has a rapid lateral movement structure, and the gap self-locking adjustment device.
Double shaft slotted part
The unique dual-axis dual-knife slotting structure eliminates front and back collision accidents, and can process large-size cartons with high cartons. (Type 1224/1428)
The grooving knife is made of high-quality alloy with a thickness of 7-8 mm, with a sharp tooth-shaped blade and high wear resistance.
Slotting knife phase, box height adjustment mechanism, frequency converter control dynamic 360 degree adjustment.
Precise linear guide system, accurate horizontal movement, smooth slotting.
It can be equipped with punching device according to user needs.
Pre-pressing wheel, crimping wheel, slotting cutter head, gap self-locking adjustment device
Snap-fit single-blade trimming knife, trimming smooth and clean, saving cost.
The electric displacement mechanism of the middle knife has strong production adaptability.
Die cutting department
The rubber cushion roller and die-cutting roller are made of high-quality steel materials, and the surface is ground and plated with hard chromium. Dynamic and static balance correction, stable operation.
The stencil roller and the rubber roller are automatically disengaged by the cylinder eccentric device without die cutting, which can reduce the no-load load of the machine and prolong the life of the rubber and die.
Cooperate with the pneumatic automatic lifting device of the paper feeding system, (the rubber pad roller descends when the paper is fed) the rubber pad roller rises after the paper feeding is stopped to ensure that each cardboard is die-cut correctly.
The mechanically-driven Youli rubber roller moves 40mm left and right, and is equipped with a radial differential device, which can evenly distribute the rubber pad wear and greatly improve the service life of the rubber pad.
The die cutting phase adopts PLC, touch screen and electric digital 360 degree adjustment.
The machine is equipped with a rubber correction device that can be used after repeated corrections to the rubber pad.
Plate-free slotting die-cutting tool holder, no need to do template when making ordinary carton slotting, saving cost and improving efficiency. (Optional)
Product introduction:
The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. It is Quick order change and easy operation.
Imported PLC, touch screen multi-function control. Can store frequently use orders to speed up the order change operation.
Choose high-quality materials and accessories.
All rollers are chrome-plated to enhance the hardness.
Features of water-based ink printing machine
The whole machine is designed and manufactured in accordance with high requirements, high speed, high efficiency, reliability and safety. It is Quick order change and easy operation.
Imported PLC, touch screen multi-function control. Can store frequently used orders to speed up the order change operation.
Choose high-quality materials and accessories.
All rollers are chrome-plated to enhance the hardness.
The transmission adopts precision grinded gear made of alloy steel and spray-type circulating lubrication system.
Use keyless continuous ring to reduce center wear, enlarge virtual position, and maintain long-term printing registration.
Adopt the hanging plate structure, automatic reset and quick change of orders.
Each unit is equipped with emergency stop switch to protect and control safety.
The gap adjustment adopts self-locking adjustment device, which is easy to operate.
The electrical components, main bearing, pneumatic control components, etc. are made by international famous manufacturers.

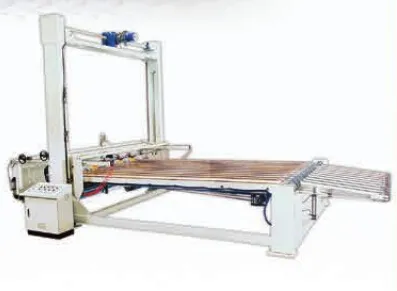

Stacking Department
The delivery system can be controlled automatically and manually.
The paper receiving arm drive belt can adjust the belt tightness separately, and the number of paper receiving arms can be selected at will.
The bed is driven by powerful chains.
The stack height is 1600mm.
The bed lifting drive motor is equipped with a brake function, so that the bed can maintain a fixed position without sliding.
Pneumatic supporting board auxiliary circulation paper receiving device.
The position of the rear baffle is adjusted manually.
The flat wrinkled belt prevents the cardboard from sliding down.

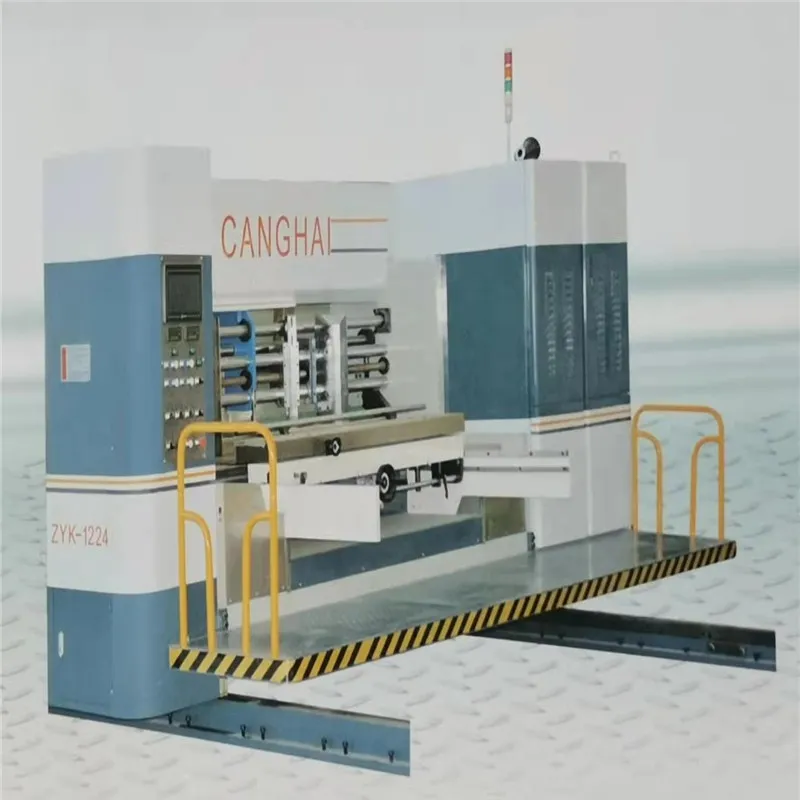

Paper feeding department
The leading edge paper feeding system, frequency conversion to adjust the air volume, paper feeding is accurate and stable.
Double-row paper feeding roller mode, front feeding and upper roller quick-change mechanism, covered with wear-resistant rubber, and equipped with spring adjustment function, which can prevent the deformation of the cardboard and ensure the accuracy of paper feeding.
Dust removal brush and dust suction device to remove paper scraps on the cardboard surface.
The touch screen displays the production speed and production quantity.
The paper feeding gap is adjusted manually.
Printing Department
The printing roller and embossing roller are made of high-quality steel with ground surface and hard chrome plating. Dynamic and static balance correction, stable operation.
Adopting plate hanging mechanism, easy and fast installation.
The loading and unloading of the printing plate is equipped with a foot switch or operation surface to control the forward and reverse rotation, which is fast and convenient.
The paper feeding system is equipped with an automatic lifting anilox roller. When feeding paper, the anilox roller automatically descends to contact the printing plate. When the paper feeding stops, the anilox roller automatically rises and separates from the printing plate.
The phase adopts an electromagnetic brake fixing device, which is intelligently reset to zero, and can be quickly reset in dynamic and static conditions.
The printing phase adopts PLC touch screen control and electric digital 360 degree adjustment.
The paper guide roller has a rapid lateral movement structure, and the gap self-locking adjustment device.

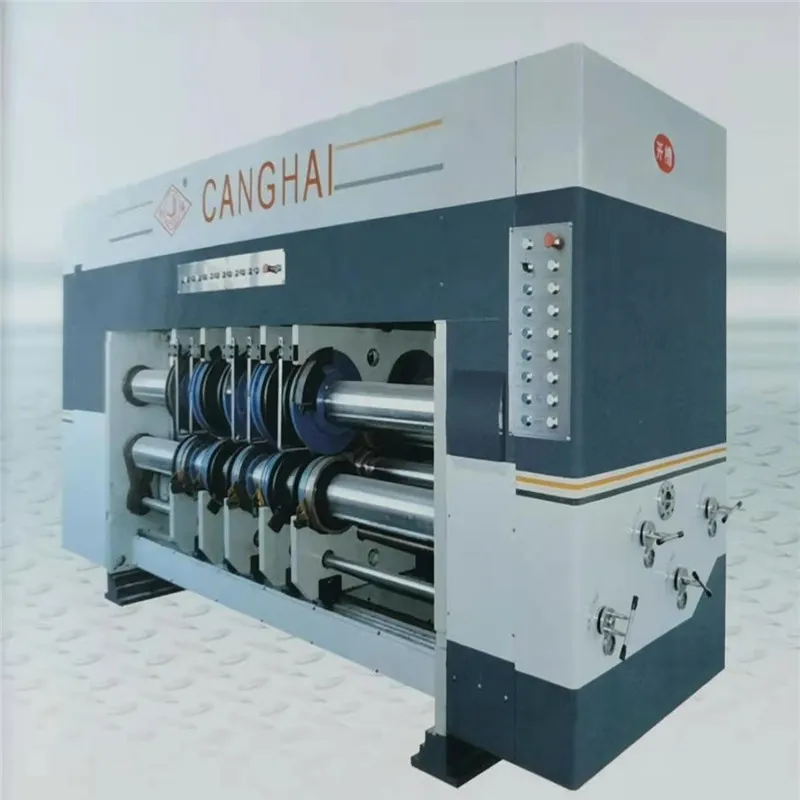

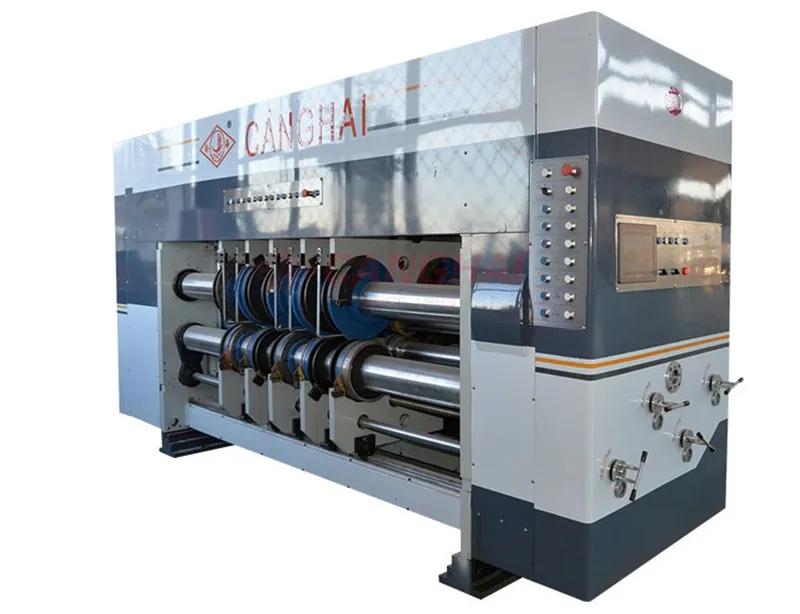

Double shaft slotted part
The unique dual-axis dual-knife slotting structure eliminates front and back collision accidents, and can process large-size cartons with high cartons. (Type 1224/1428)
The grooving knife is made of high-quality alloy with a thickness of 7-8 mm, with a sharp tooth-shaped blade and high wear resistance.
Slotting knife phase, box height adjustment mechanism, frequency converter control dynamic 360 degree adjustment.
Precise linear guide system, accurate horizontal movement, smooth slotting.
It can be equipped with punching device according to user needs.
Pre-pressing wheel, crimping wheel, slotting cutter head, gap self-locking adjustment device
Snap-fit single-blade trimming knife, trimming smooth and clean, saving cost.
The electric displacement mechanism of the middle knife has strong production adaptability.

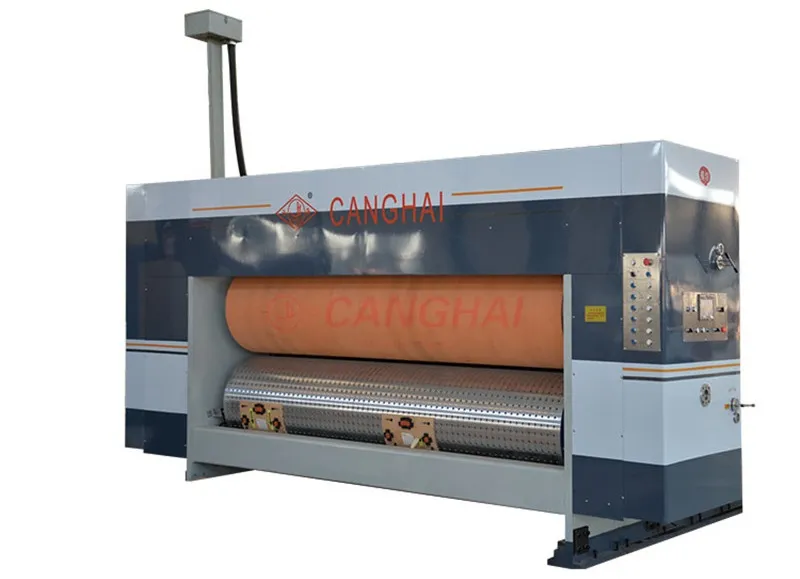

Die cutting department
The rubber cushion roller and die-cutting roller are made of high-quality steel materials, and the surface is ground and plated with hard chromium. Dynamic and static balance correction, stable operation.
The stencil roller and the rubber roller are automatically disengaged by the cylinder eccentric device without die cutting, which can reduce the no-load load of the machine and prolong the life of the rubber and die.
Cooperate with the pneumatic automatic lifting device of the paper feeding system, (the rubber pad roller descends when the paper is fed) the rubber pad roller rises after the paper feeding is stopped to ensure that each cardboard is die-cut correctly.
The mechanically-driven Youli rubber roller moves 40mm left and right, and is equipped with a radial differential device, which can evenly distribute the rubber pad wear and greatly improve the service life of the rubber pad.
The die cutting phase adopts PLC, touch screen and electric digital 360 degree adjustment.
The machine is equipped with a rubber correction device that can be used after repeated corrections to the rubber pad.
Plate-free slotting die-cutting tool holder, no need to do template when making ordinary carton slotting, saving cost and improving efficiency. (Optional)
| Modle | 1428 | |
| Max.machine speed(pcs/m) | 160 | |
| Max.feeding size | 1500×3000 | |
| Skip.feeding size | 1800×3000 | |
| Max.printing area | 1430×2800 | |
| Min.feeding size | 350×750 | |
| Max.Depth of slotting | 390 | |
| Registration precision | ≤±0.4(four colour) | |
| Printing plate thickness | 7.2 | |
| Max.printing area | 2.5-12 | |
| Min.slotting interval | Normal | 150×150×150×150 |
| Reverse | 250×110×250×110 | |
