Flexographic Printing Slotting Die Cutting Box Machine; Lead Edge Feed Printer Slotter Box Machine

Product Description

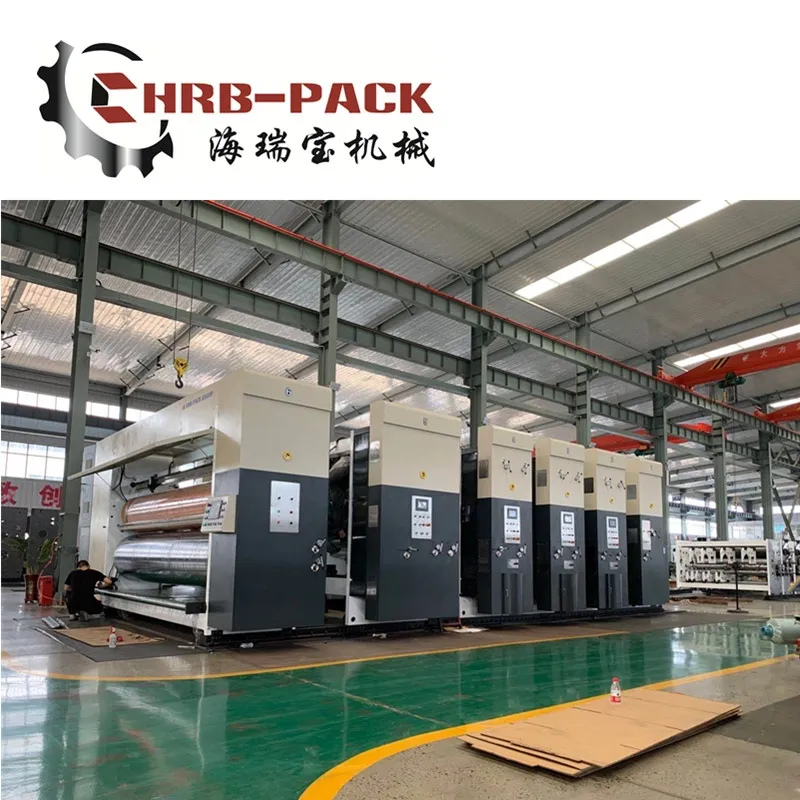

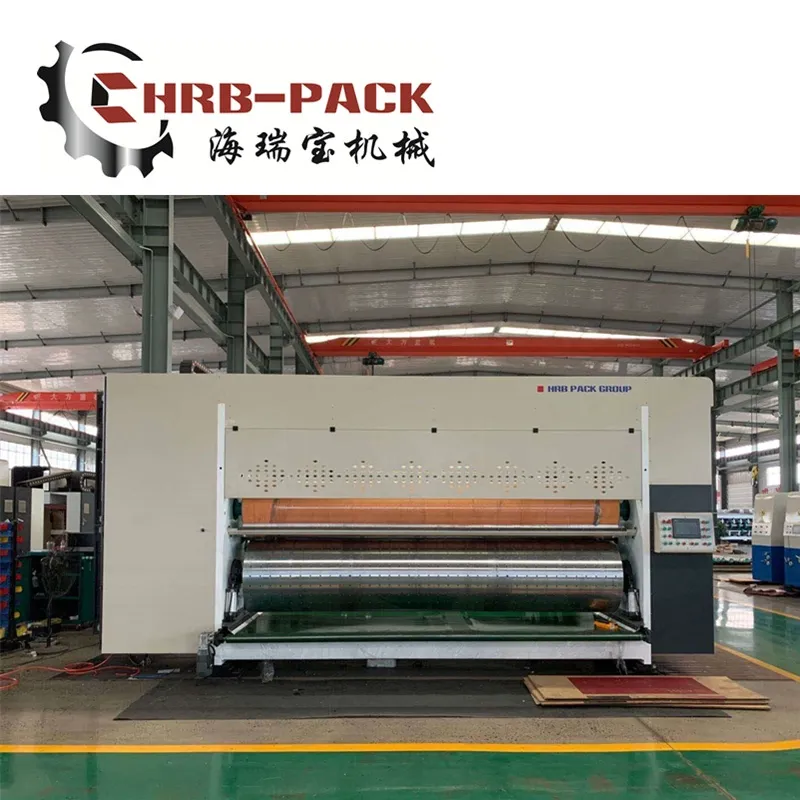

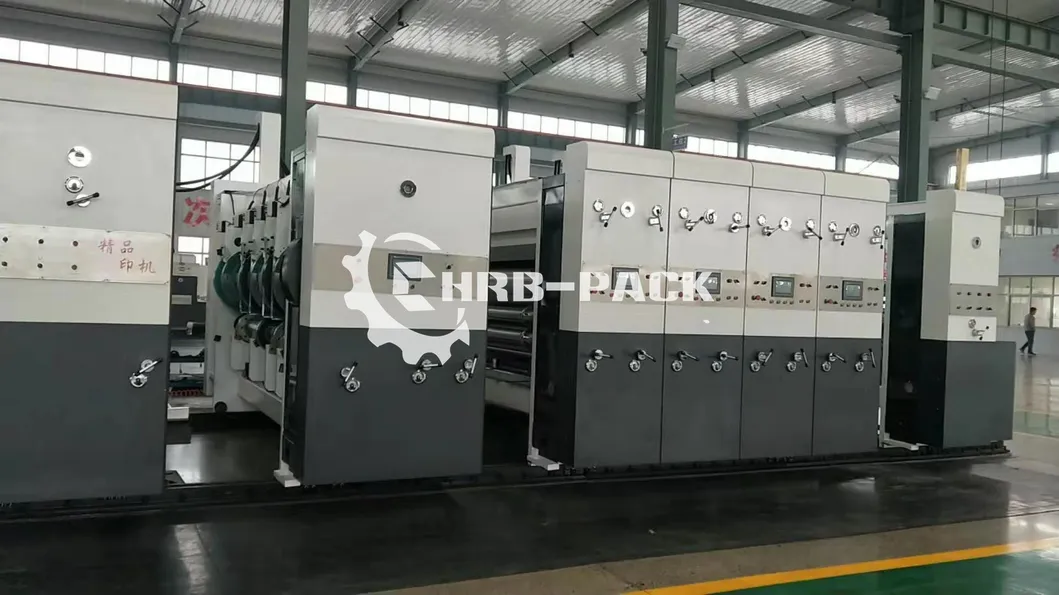

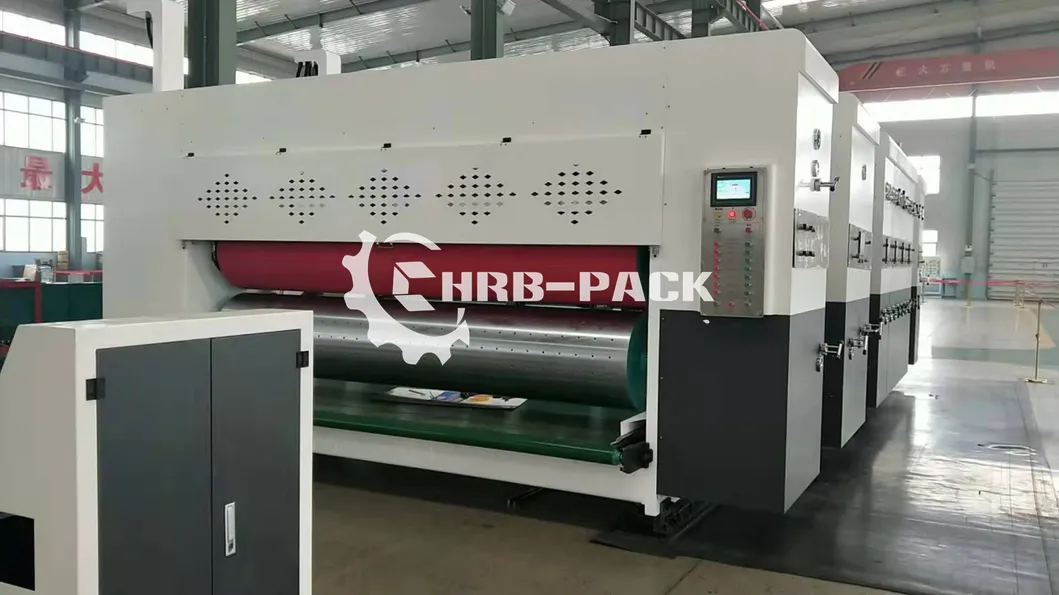

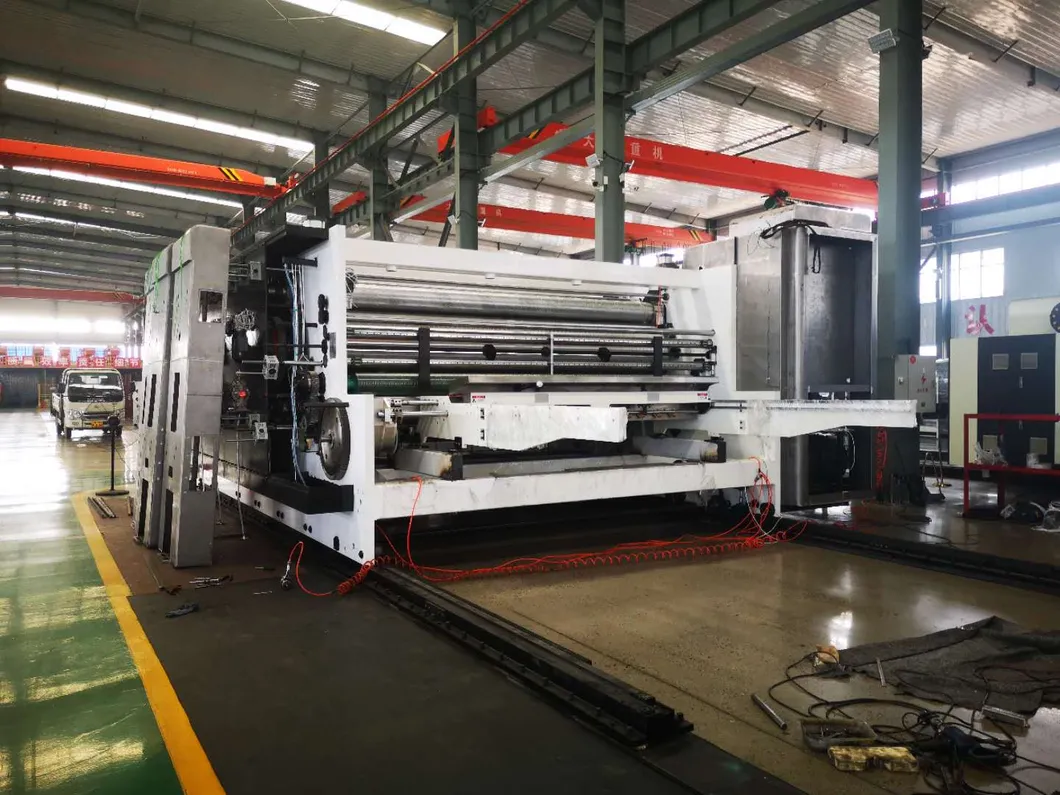

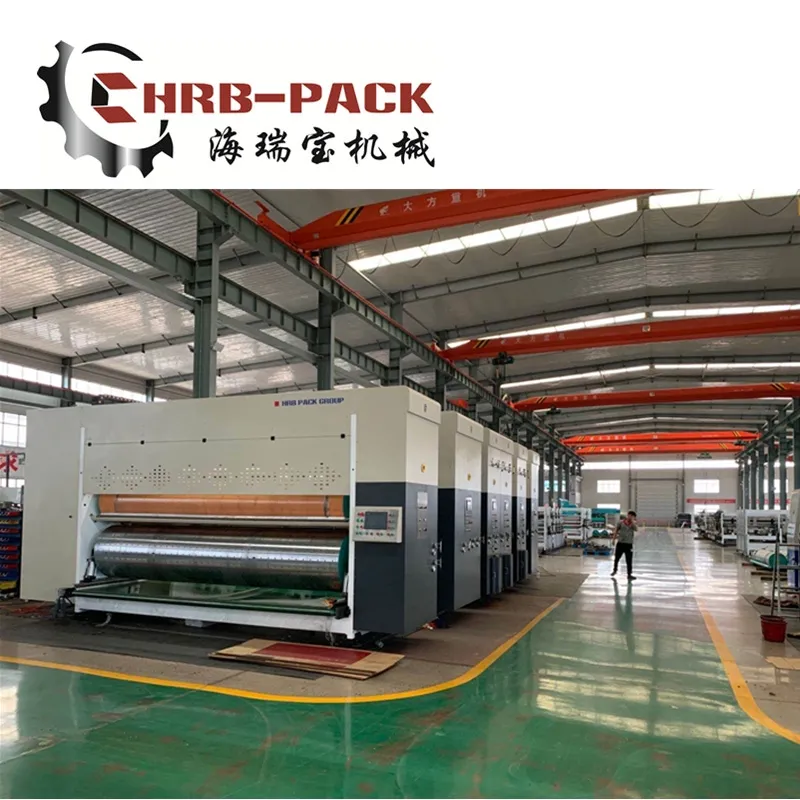

2500*4200 mm Lead edge feeding Four-color printer slotter die cutter machine

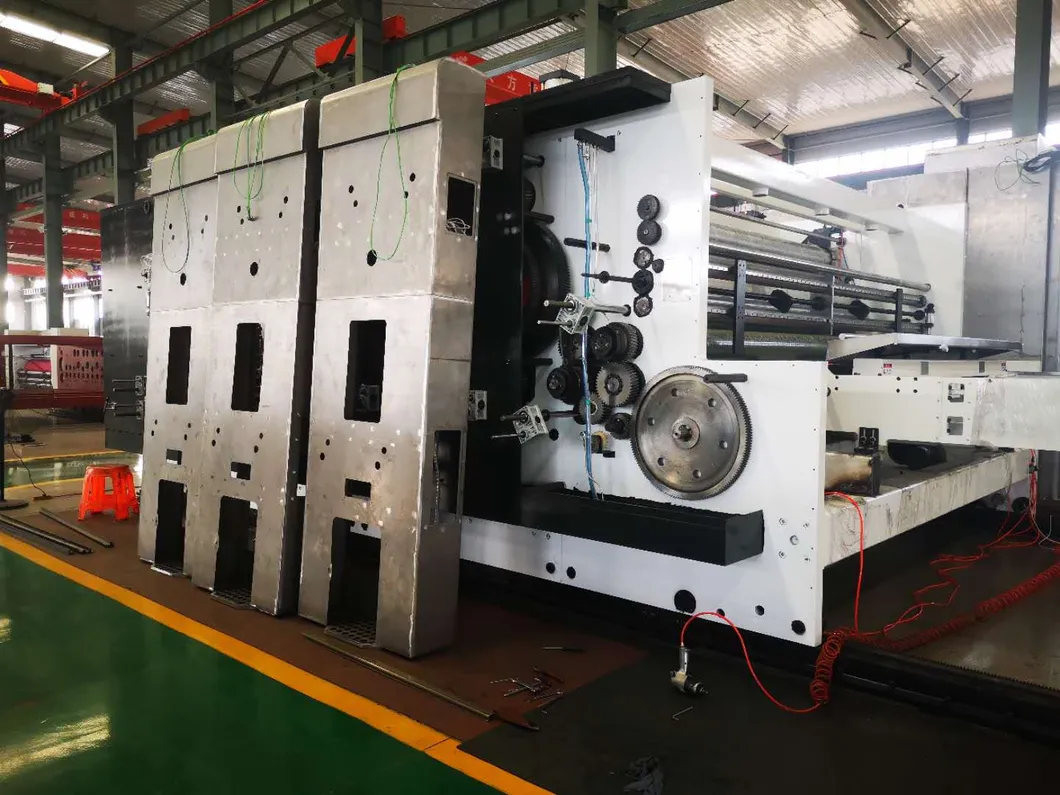

Lead-edge Feeding System

Lead-edge suction feeding system, easy operation, high accuracy,(adopts lead feeder system).
7.5KW high pressure centrifugal fans, according to the cardboard.
Left and right side baffle position electrically adjustable, screw-driven.and can remember by computer.
Front baffle adjust the position of the upper and lower intervals synchronization by manual.
Skip-feeding devices, could select skip-feeding according to needs. To ensure that large-scale cardboard can also be processed.
Install 7" touch screen, could automatically display the production quantity, production speed, and set the production quantity and every operating.
Slotting part is equipped with the interlock switch, to achieve the emergency stop, stop feeding or feeding.

Machine Separation & Combination

Button switches electrically control the separation and combination of machine, with automatic alarm device, continuously alarm while moving, to ensure safety of operators.
Air pressure interlocks, lock securely, conveniently and accurately.
Machine clutch drive shaft is equipped with overload protection device.
Active self-locking function: if unit is not completely locking state,the host cannot start, to ensure the safety of machine and operator;
while host normal working conditions, the unit clutch function is automatically lock, to avoid machine misuse and personal injury.

Dust-removal System

Adopt brush cleaning device, equipped with strong Negative pressure suction fan, clearing the dust, paper scrap or other waste, to improve printing quality.

Feeding Roller: double Feeding Roller

Upper feeding roll adopts outer diameter φ178.4mm rubber roller, elastic buffer wear rubber (inside soft, outside hard), dynamic balance correction, to ensure smooth and accurate feeding.
Lower feeding roller adopts embossed rollers, hard chrome-plated, wear and smooth.
According to cardboard thickness, adopt worm gear box gap tuning, with locking device. Adjustment range 0-12mm

Printing machine:

Outer diameter φ686mm (With printing plateφ700mm)
High quality steel production, surface grinded, hard chromium-plated. Static balance adjustment, stable operation, suitable for high speed running
Roller horizontal direction and circumferential direction with datum line, convenient for align plate
Fixed coil axis, suitable for standard hanging slats, realize rapid change plate
Electric 360° adjust printing roller, automatic digital display adjustment, remember store digital.
Installed with footswitch to control plate roller reversing, convenient change plate
Auto-zero function, order memory.
Printing roller plate-change and fix-plate function.
Printing roll axial is adjusted left and right by manual, maximum movement left and right 10mm,auto-zero instruction.

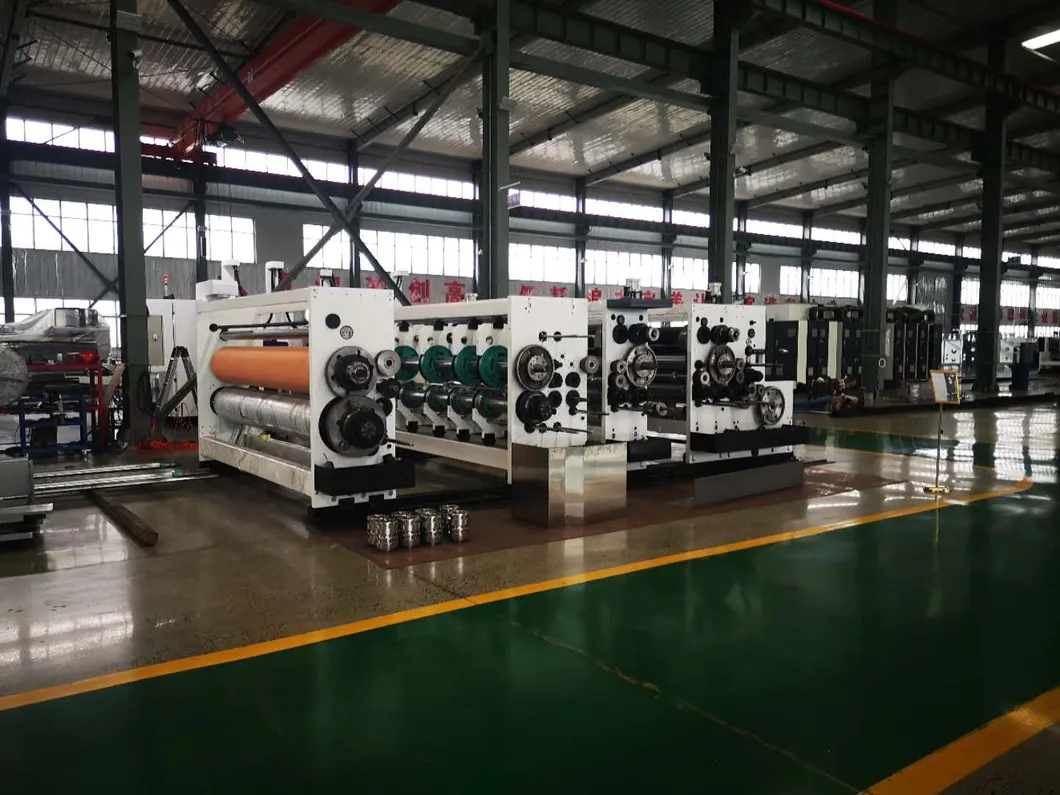

slotting machine:

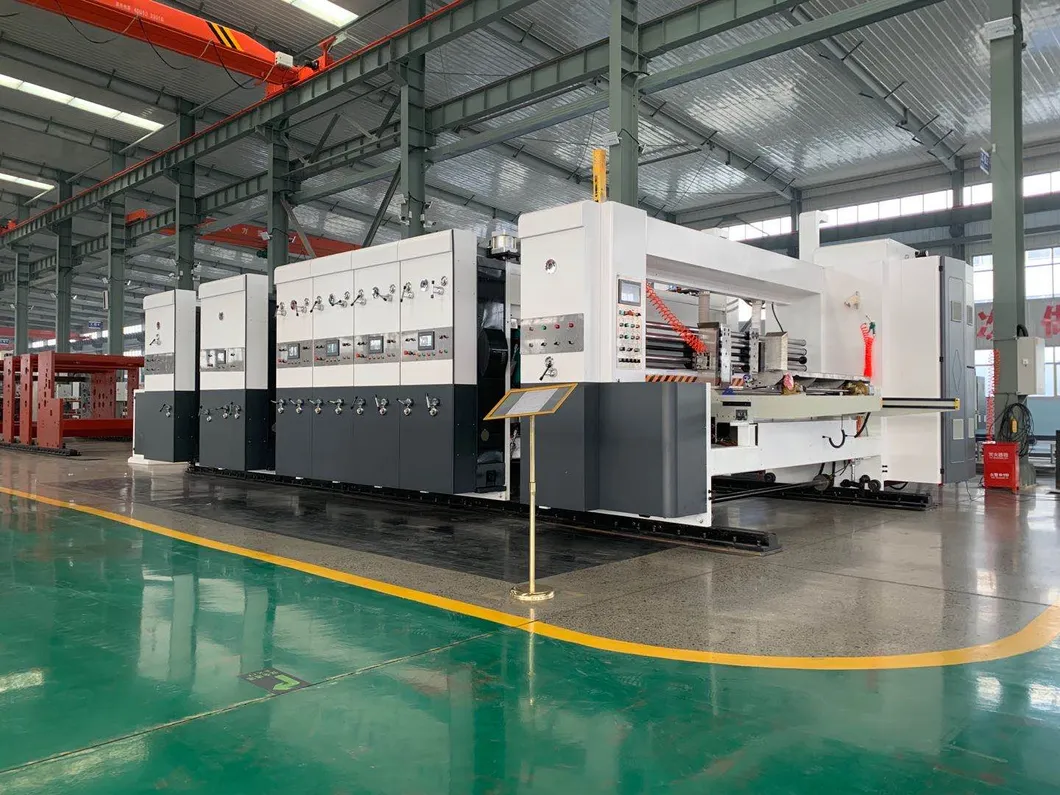

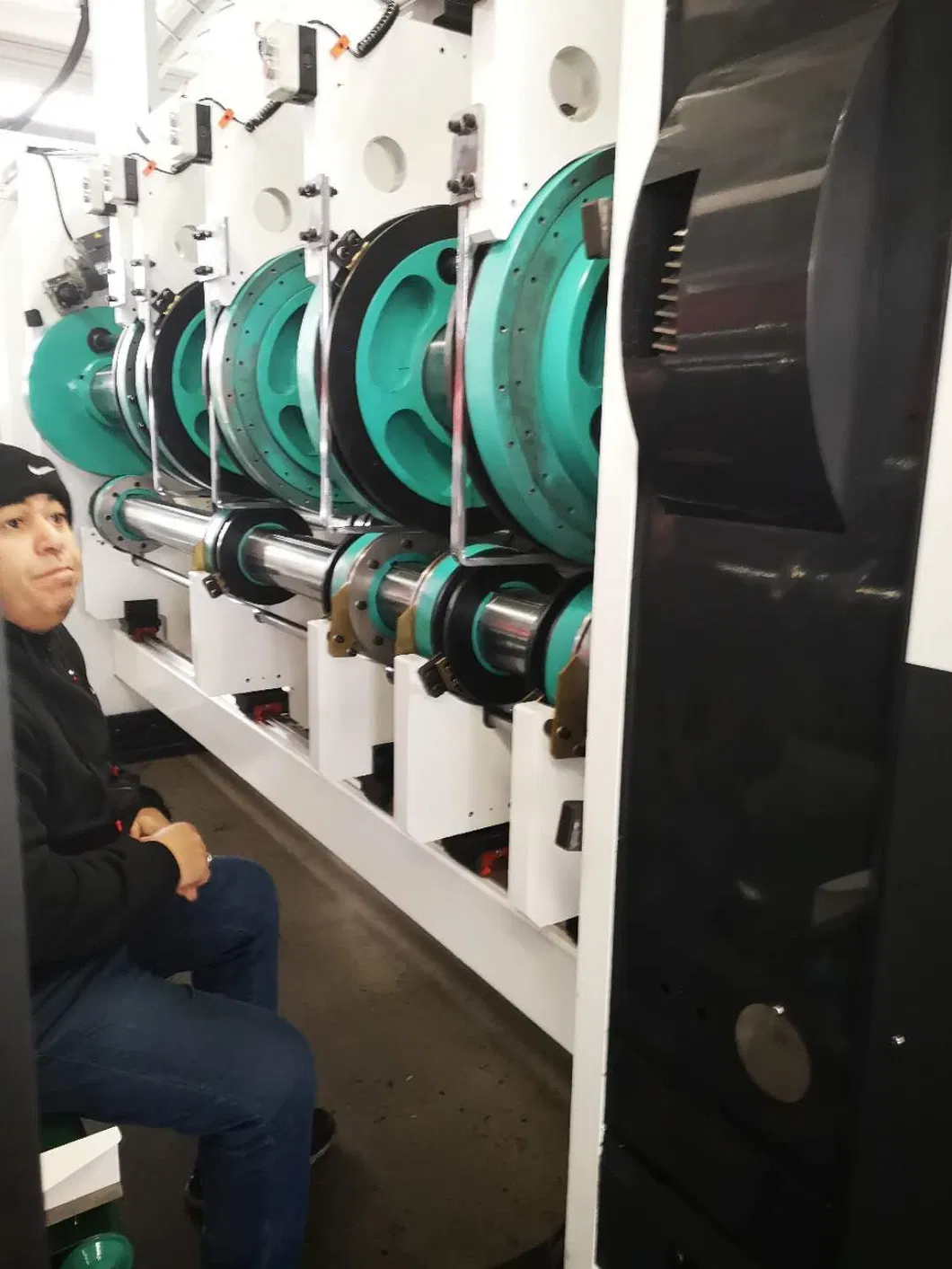

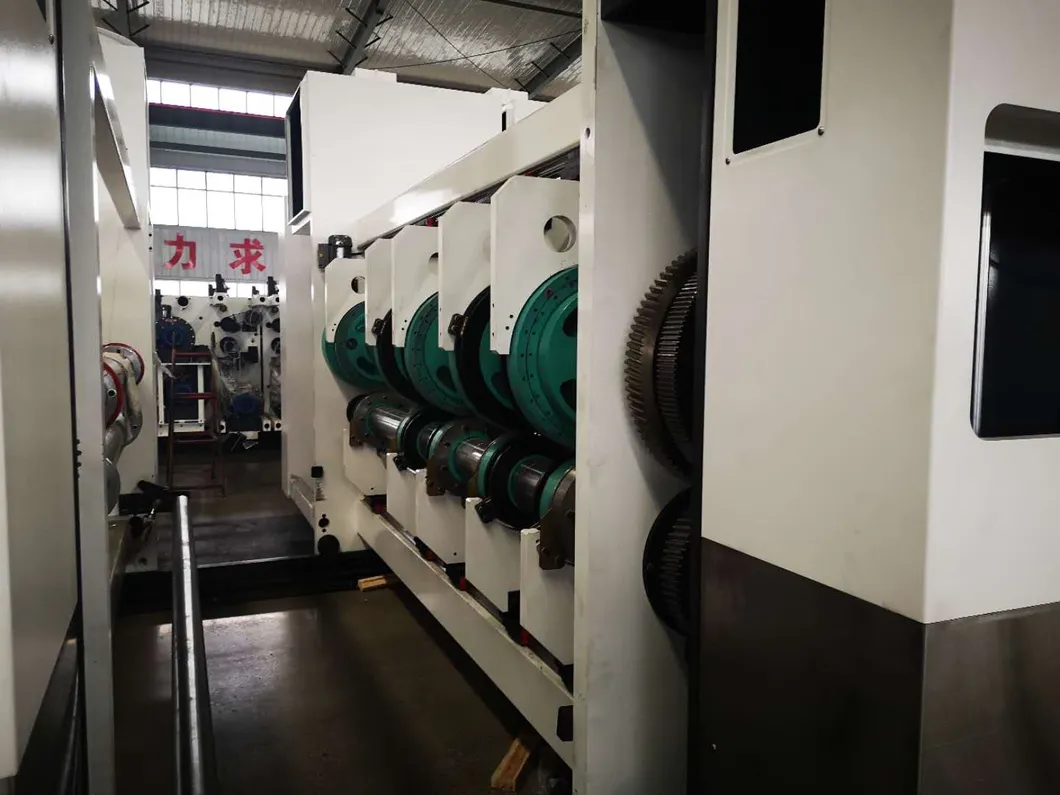

6 shaft with pre creaser/ creaser/ slotter
Slotter shaft have 5 slotter head.
Slotter knife thickness: 8mm
Computer control adjustment, can memory 999 orders
The above press round Urethane appearance package, will not damage the cardboard
The slotter knife stock use traverse mechanism, screw with linear guide, to move more flexible and precise
Slotting phase and box height, computer and electric digital control
Preload, creasing gap adjustment adopt computer and electric digital control
The slotter knife stock gap adjustment adopt self-locking structure
There's the elastic corner-cutting knife. Can cut three, five, cardboard without adjusted.
Preload wheel, crease wheel, slot knife traverse position computer and electric digital control
The slotter knife adopt Anti-knife manner

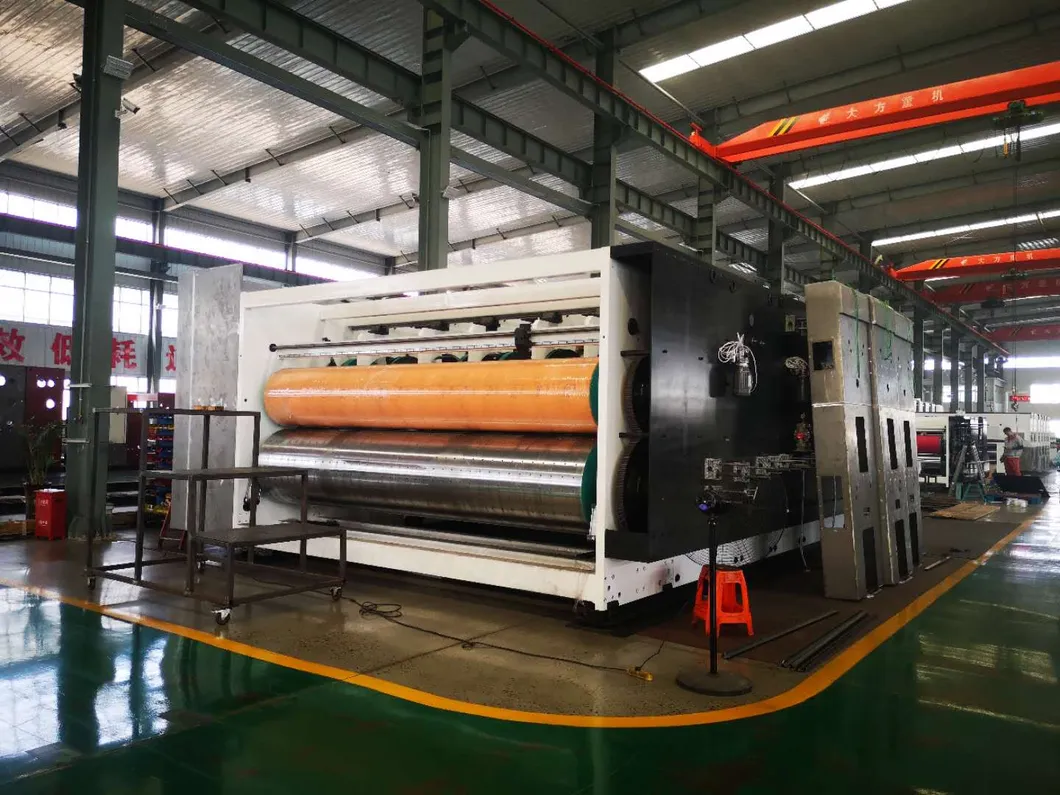

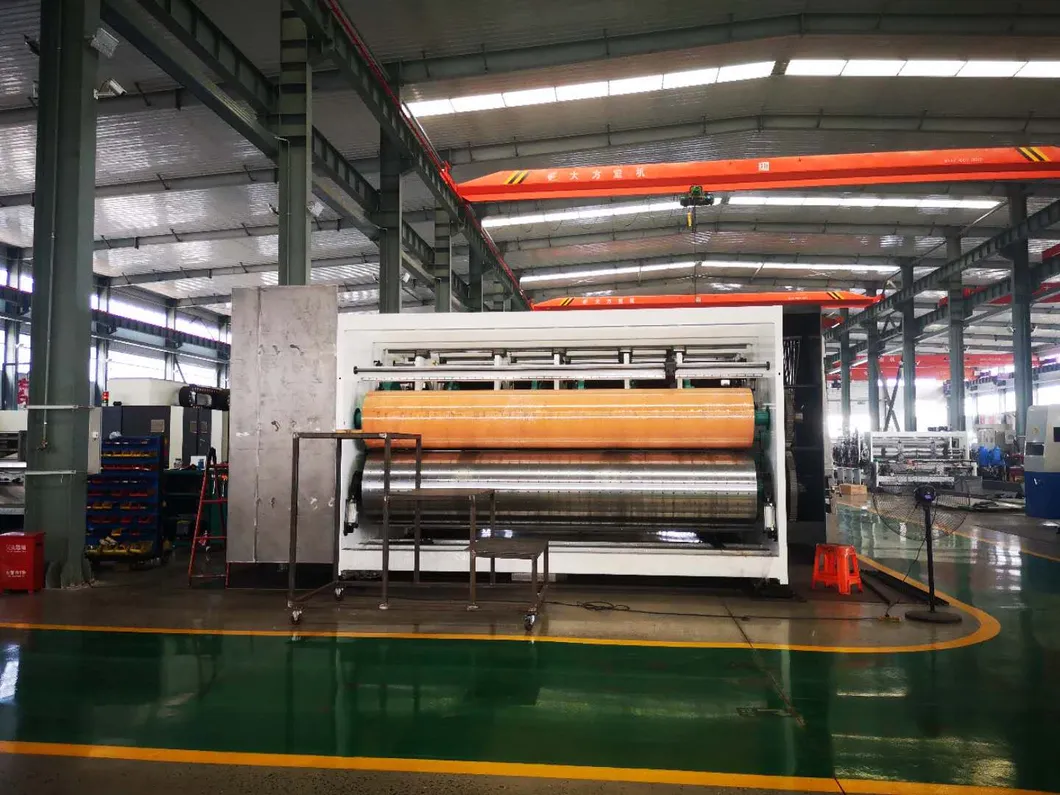

Die cutting machine:

Die cutter shaft diameter: 650mm. include die mold: 700mm
Rubber shaft diameter:580mm, include rubber: 600mm
Rubber roller mechanical spiral commutation 30mm move about horizontal structure
Die-cutter phase, computer and electric digital control
Horizontal phase, computer and electric digital control, range ±5mm
Rubber roller and die roller gap use computer and electric digital control,
Adjust the transfer roller use computer and electric digital control,
The rubber roller compensated by motor-driven,control the speed of thr rubber roller, range ±3mm
Rubber roller hsiuping cutting structure, keep rubber surface roughness
Stripping the belt longitudinal output,to easy clean waste paper.
