Flexo Printer Slotter Die Cutter Box Machine
HRB PACK AUTO FEEDER CHAIN PRINTER SLOTTER MACHINE Main Technical Parameters HRB-1428 CHAIN FEED PRINTER SLOTTER DIE CUTTER MACHINE Wallboard thickness 50mmMax Machine Speed (pcs/min) 60Economic Working Speed (pcs/min)50Max. Feeding Size (mm) 1400×2600Min. Feeding Size (mm) 450x660Standa......
Send Inquiry
Product Description

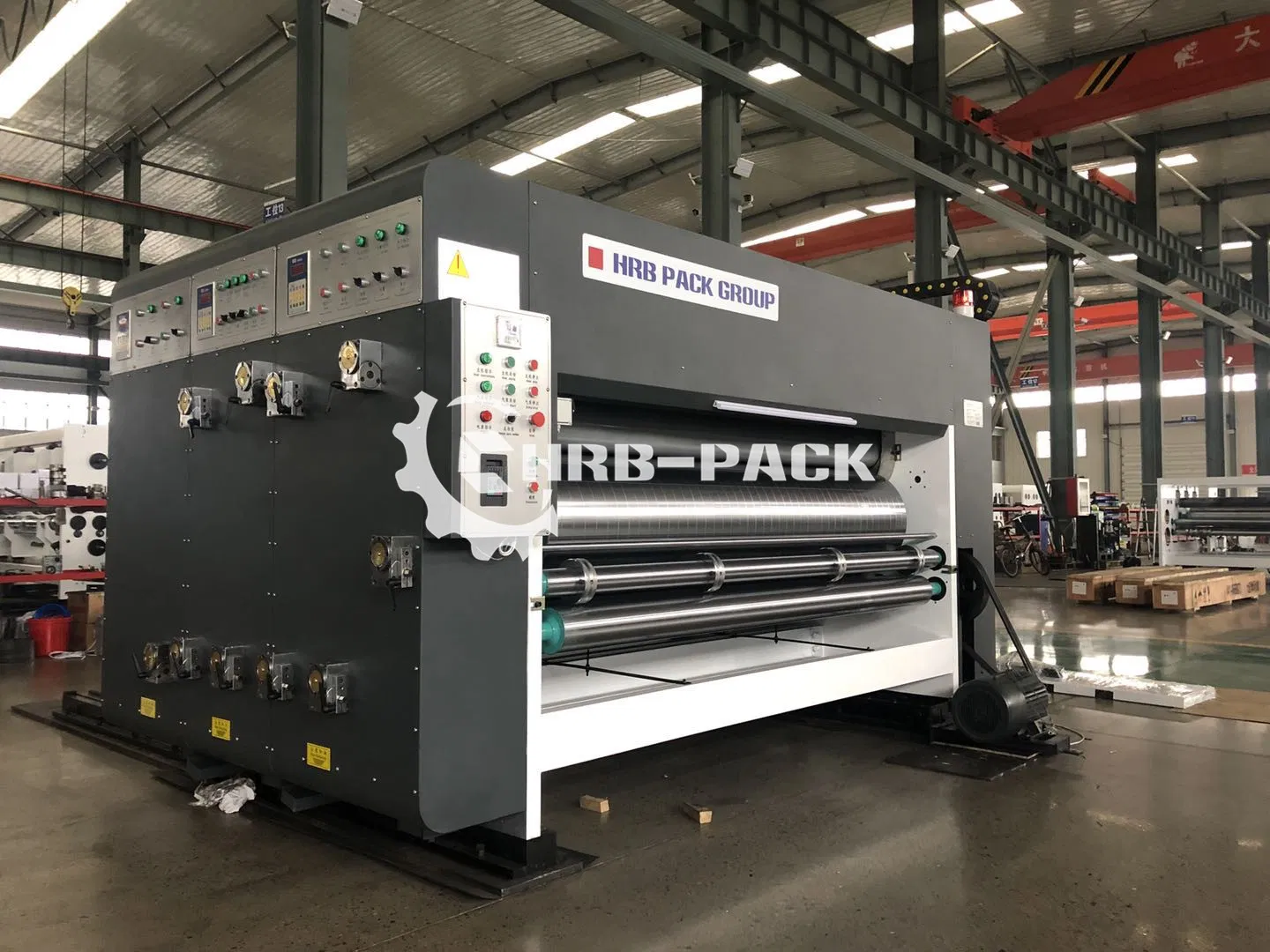

HRB PACK AUTO FEEDER CHAIN PRINTER SLOTTER MACHINE
Main Technical Parameters
| HRB-1428 CHAIN FEED PRINTER SLOTTER DIE CUTTER MACHINE | |
| Wallboard thickness | 50mm |
| Max Machine Speed (pcs/min) | 60 |
| Economic Working Speed (pcs/min) | 50 |
| Max. Feeding Size (mm) | 1400×2600 |
| Min. Feeding Size (mm) | 450x660 |
| Standard Plate Thickness (mm) | 3.9 |
| Min. slotter distance POSITIVE | 130X130X130X130 |
| Min. slotter distance NEGATIVE | 230X65X230X65 |
| Max slotter depth (mm) | 300 |
| Print precision (mm) | ±0.3 |
| Slot precision (mm) | ±1.0 |
| Die-cut precision (mm) | ±1.0 |
| Suitable Cardboard Thickness (mm) | 2 - 11 |
Main features
- 1.printer slotter phase: electric number digital adjust
- 2. auto ink circulation system

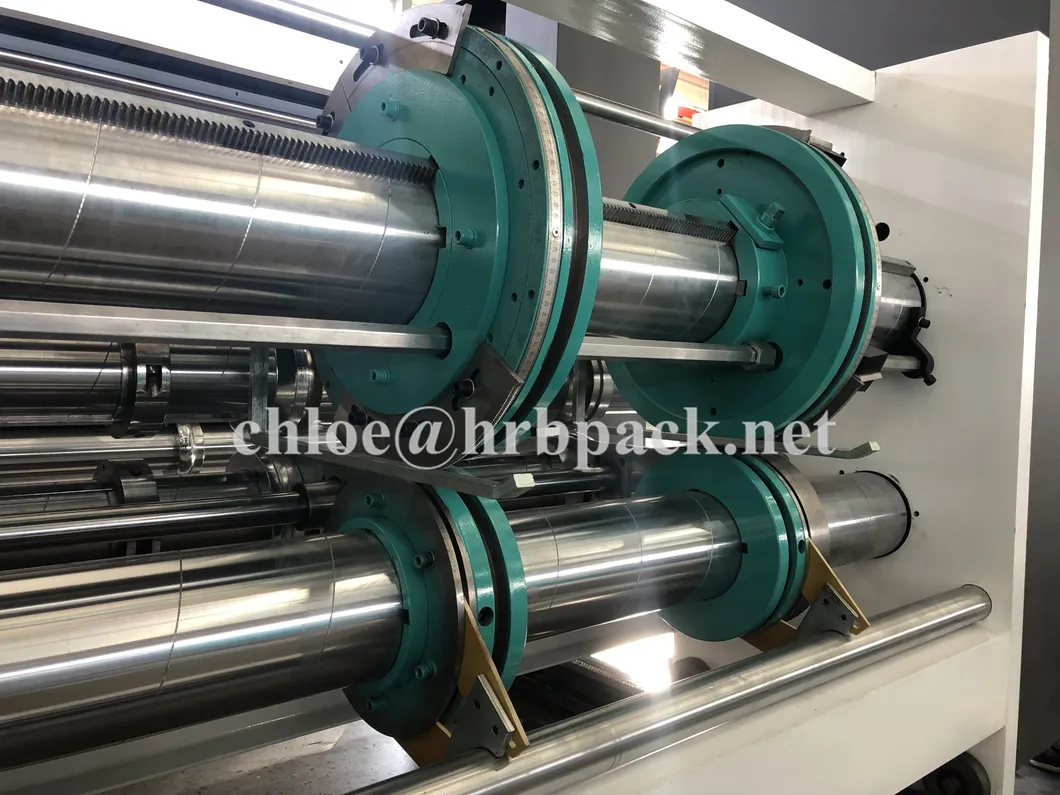

- 3. combined slotting creasing slitting knives that are easy to change order.
- 4.The gear of the machine: Auto lubrication with oil
- 5.Machine body thickness:50mm
- 6.automatic separate, pneumatic lock-up.

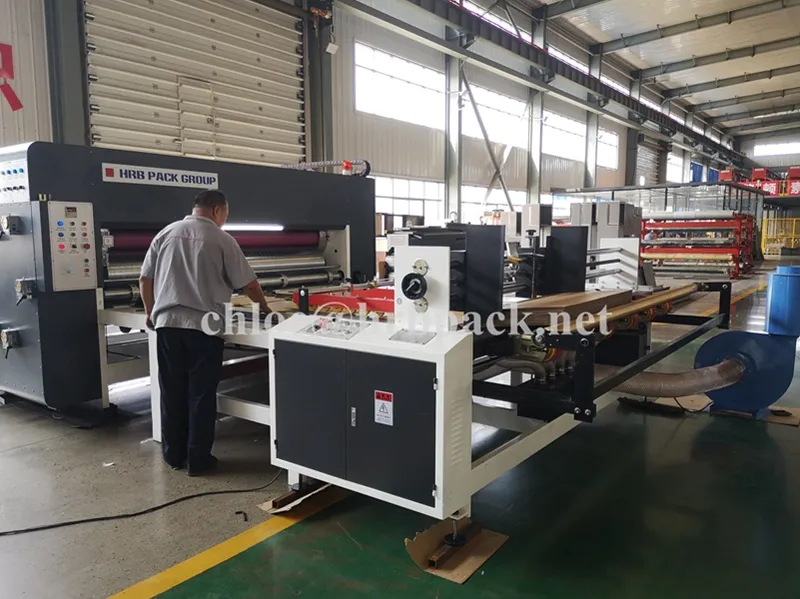

Auto feeder part:

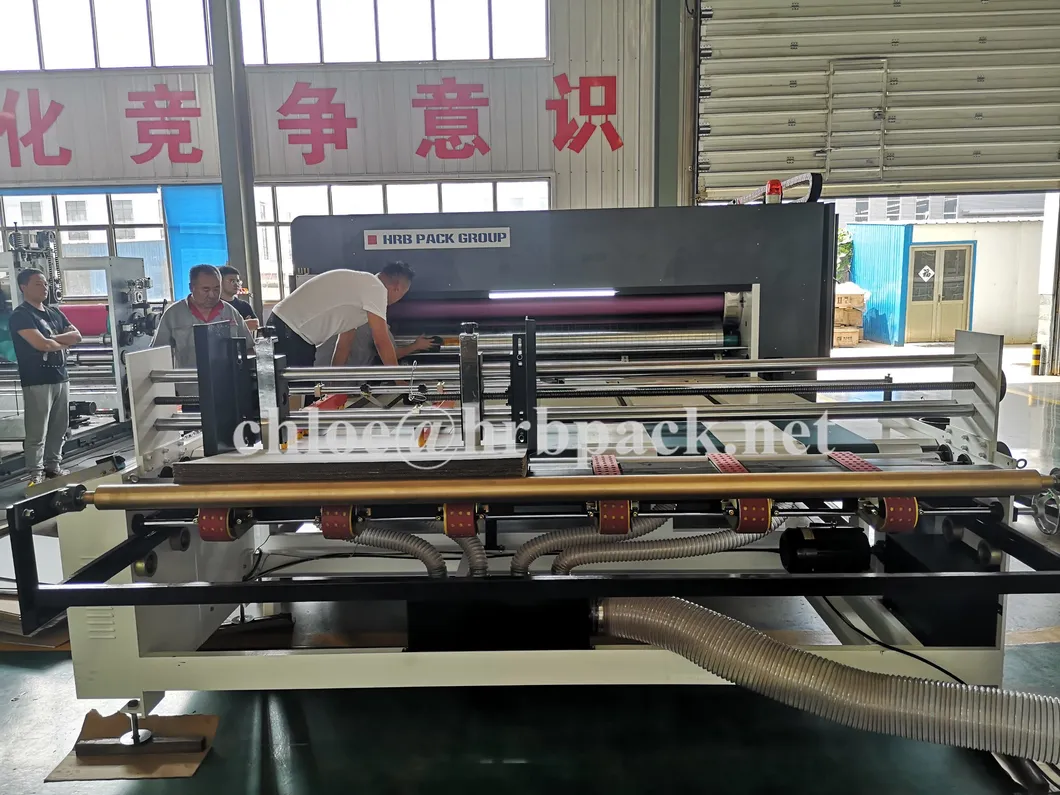

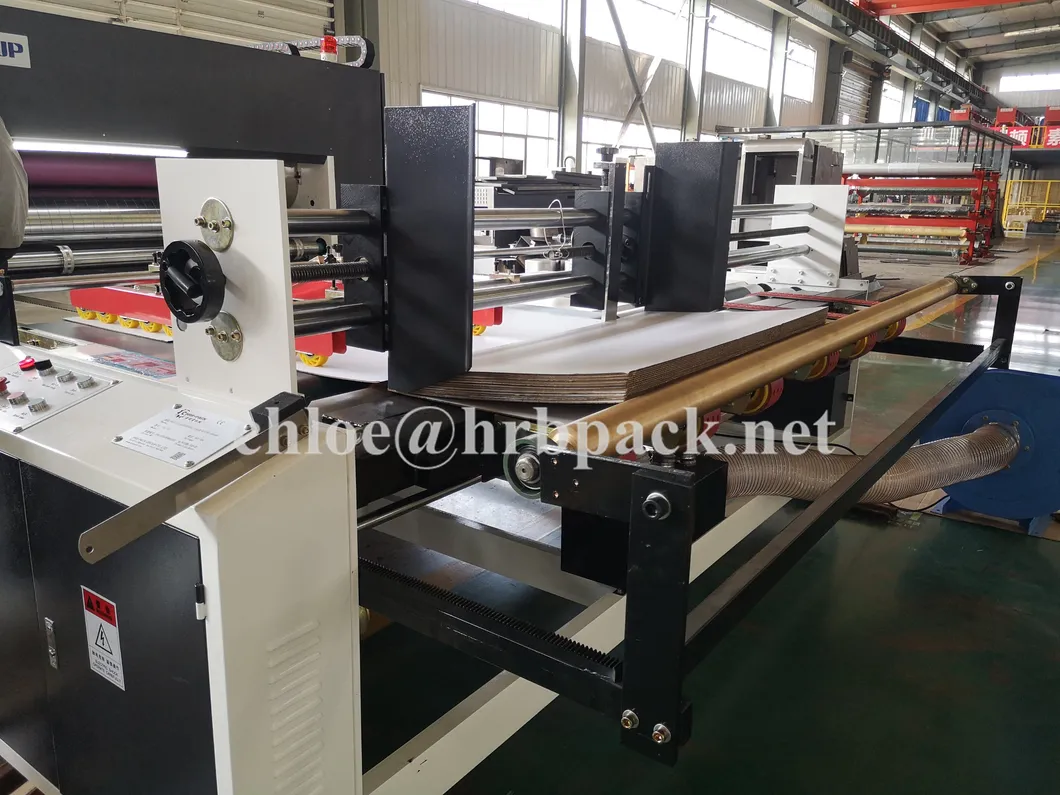

- 1. Automatic feeding paperboard
Printer part:
- 1.pasting printing plate

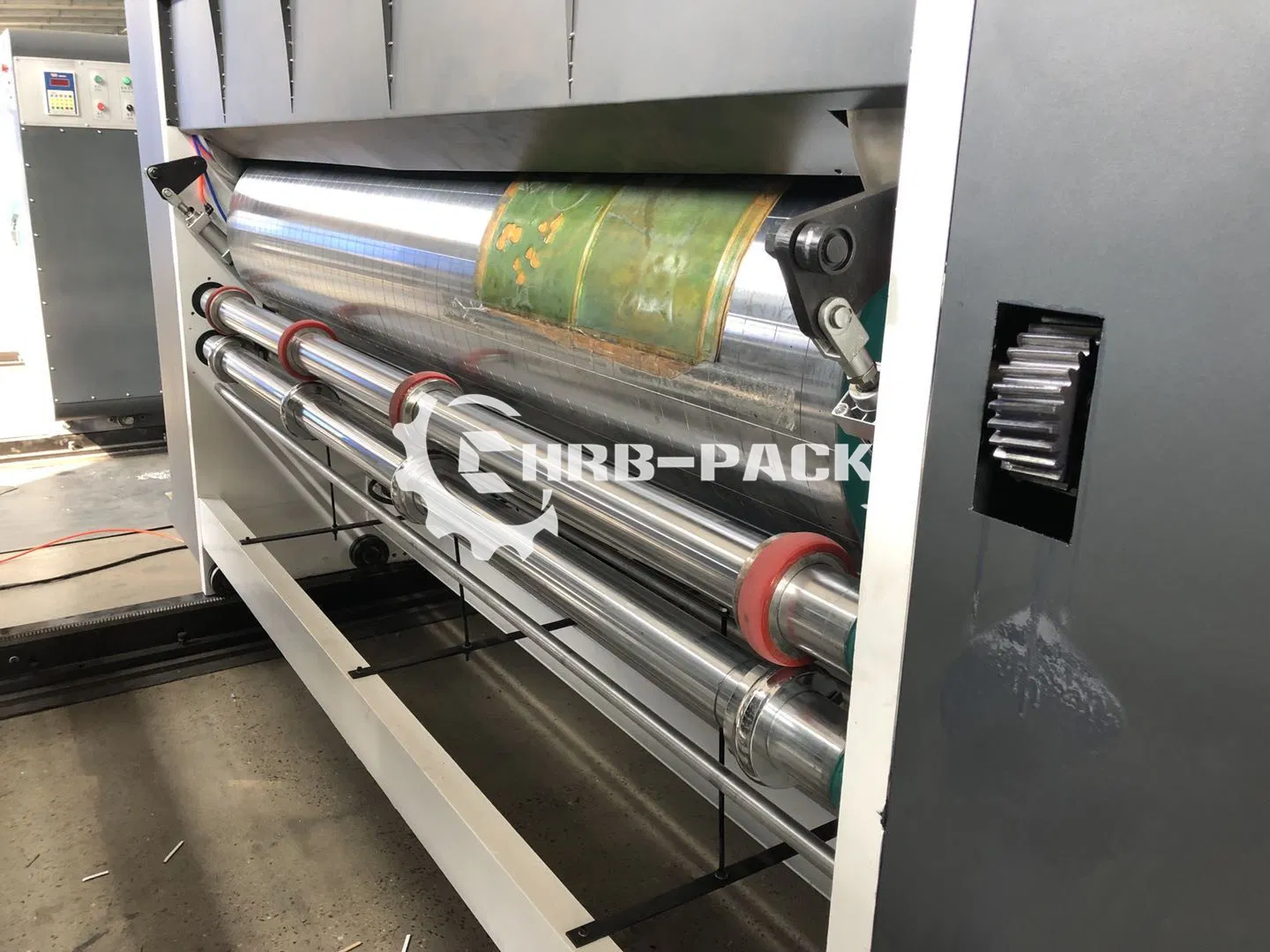

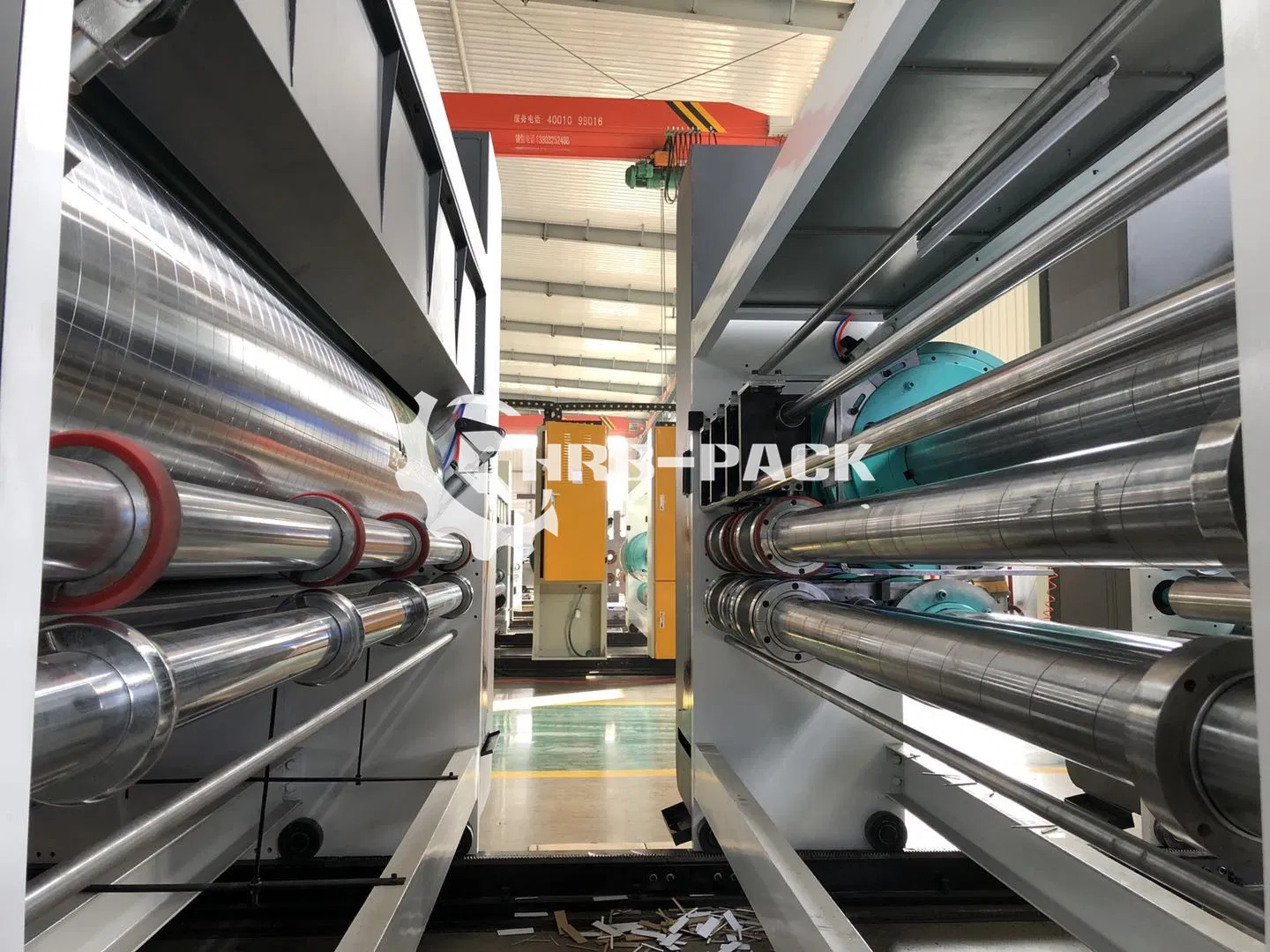

- 2.using metal anilox roll with rubber roll
- 3.electric adjusting phase
- 1.electric adjusting phase
- 2.manual adjusting slotting knife
- 3.manual lock and loosen
- 4.pre-pressure, pressure, and slotting
