What is a Solar Fuse and Why or When Do You Need It?

A solar fuse is a safety device designed to protect the components in a solar photovoltaic (PV) system from overcurrent, which can be caused by electrical faults or unexpected power surges. Solar fuses are crucial in solar systems because they safeguard against potential damage, reduce fire risks, and ensure continuous, safe operation of the system.

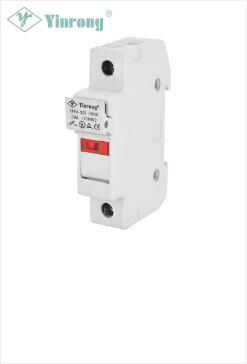

What Is a Solar Fuse?

A solar fuse is specifically rated to handle the unique demands of DC (direct current) electricity in solar systems. Solar PV systems generate DC power, which behaves differently from AC (alternating current) power, particularly in fault conditions. Because DC current doesn’t cross zero as AC does, it’s harder to interrupt, requiring specially designed fuses that can effectively break the circuit under high DC conditions.

Solar fuses come with specific characteristics:

- High DC Voltage Rating: Solar fuses are often rated for high voltages (up to 1,000V DC or more) due to the combined voltage output of solar panels.

- High Temperature and Weather Resistance: Since solar fuses are often installed outdoors or near roof panels, they are built to withstand extreme temperatures and UV exposure.

Why Do You Need a Solar Fuse?

1. Protect Against Overcurrent: In case of a fault, such as a short circuit or a ground fault, an overcurrent can flow through the system. The solar fuse interrupts this overcurrent, preventing overheating, fire, and damage to the panels, wiring, and other components.

2. Safety for High Voltage DC Circuits: Solar PV systems can reach hundreds or thousands of volts, especially in large installations. These high voltages create significant risks in fault conditions, so solar fuses are essential to safely disconnect parts of the system when necessary.

3. Compliance with Electrical Codes and Standards: Solar installations must adhere to various safety standards and codes, such as the National Electrical Code (NEC) in the United States. These regulations often require fuses in specific parts of the solar array for safety and compliance.

4. System Longevity: By providing circuit protection, solar fuses help protect components in the solar system, such as the inverter and charge controller, from excessive current that can shorten their lifespan or cause permanent damage.

When Do You Need Solar Fuses?

Solar fuses are typically required in these situations:

1. In Series-Connected Solar Panels (String Protection):

  - When multiple panels are connected in series to increase voltage, they form a "string." If one string has a fault, fuses prevent the current from other strings from flowing into the faulted string, which could cause overheating and damage.

2. For Each Array or Combiner Box:

  - In larger solar installations, strings are often combined in a combiner box. Fuses are placed at each string's input to protect against potential faults in any single string that could affect the entire array.

3. To Protect Charge Controllers and Inverters:

  - Charge controllers and inverters are costly components that are highly sensitive to overcurrent. Fuses protect these devices from potential overcurrent conditions on both the input (from panels) and output (to batteries or load).

4. Between Battery Banks in Solar Battery Storage Systems:

  - In off-grid or hybrid systems that use battery storage, fuses protect battery banks from overcurrent. A fault in one battery could otherwise cause excessive current from other batteries or solar panels to flow through, risking serious damage or fire.

Choosing the Right Solar Fuse

Selecting a fuse for solar applications involves:

- Voltage Rating: Ensure it matches or exceeds the system’s maximum voltage.

- Current Rating: Choose a fuse rated slightly above the expected maximum current.

- Fuse Type: Use fuses designed for DC use and specifically rated for PV applications to ensure safe operation.

Benefits of Solar Fuses

- Enhanced System Safety: Prevents damage due to faults and protects against fire risks.

- Compliance and Insurance: Essential for meeting safety codes and may be necessary for insurance purposes.

- Improved Longevity: Prevents excessive wear on components, maximizing the lifespan of the PV system.

Summary

A solar fuse is vital for protecting the integrity, safety, and longevity of solar PV systems, especially when dealing with high DC currents and voltages. Proper fuse placement in a solar array or battery system ensures that each component operates safely, adhering to regulations and safeguarding investments in solar infrastructure.
