The Science Behind Ball Valves: Understanding Fluid Dynamics and Material Engineering

Ball valves are a fundamental component in fluid control systems, widely used across various industries for their efficiency and reliability. Understanding the science behind ball valves involves delving into fluid dynamics, material engineering, and the principles that make these valves so effective. In this blog post, we will explore the scientific principles that underpin the operation of ball valves, focusing on fluid dynamics and material properties.

Fluid Dynamics in Ball Valves

1. Flow Control Mechanism

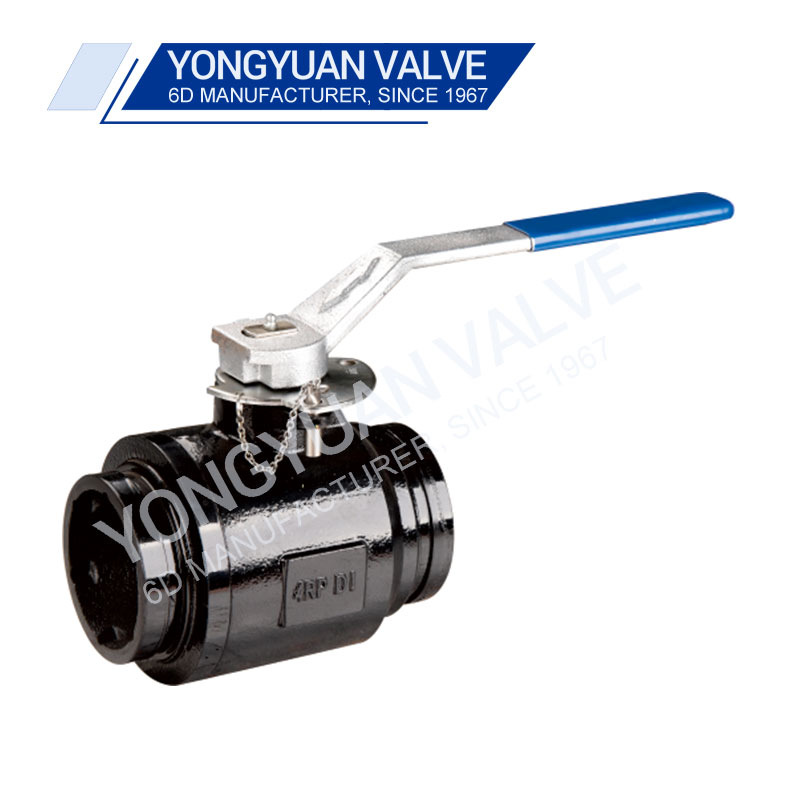

  - Principle of Operation: Ball valves operate on a simple principle: a hollow, perforated ball within the valve body rotates to either allow or block fluid flow. When the valve handle is turned 90 degrees, the ball aligns with the flow path, permitting fluid to pass through. Turning the handle back closes the flow path, stopping the fluid.

  - Laminar vs. Turbulent Flow: When a ball valve is fully open, the fluid experiences minimal resistance, resulting in laminar flow, which is smooth and predictable. However, if the valve is partially closed, the flow can become turbulent, increasing resistance and potential pressure drop.

2. Pressure Drop and Flow Rate

  - Bernoulli's Principle: According to Bernoulli's principle, an increase in the speed of a fluid occurs simultaneously with a decrease in pressure or potential energy. In the context of ball valves, when the valve is open, the fluid speed increases slightly due to the constriction, leading to a minor pressure drop.

  - Flow Coefficient (Cv): The flow coefficient (Cv) is a crucial parameter in valve design, representing the valve's capacity to pass fluid. It defines the flow rate of water through the valve at a specific pressure drop. Higher Cv values indicate lower resistance to flow, which is desirable for efficient fluid control.

3. Hydrodynamic Forces

  - Force on the Ball: When fluid flows through the valve, it exerts pressure on the ball. This hydrodynamic force must be balanced by the valve's design to ensure smooth operation. Proper alignment and support of the ball are critical to minimizing wear and tear.

  - Cavitation: In high-velocity applications, the rapid pressure drop across the valve can lead to cavitation, where vapor bubbles form and collapse, causing damage to the valve components. Understanding and mitigating cavitation is essential in high-pressure systems.

Material Engineering in Ball Valves

1. Material Selection

  - Corrosion Resistance: The choice of materials for ball valves depends on the fluid being controlled. Stainless steel and brass are commonly used due to their excellent corrosion resistance. For highly corrosive environments, materials like Hastelloy or PVC may be required.

  - Temperature Tolerance: Ball valves must withstand a wide range of temperatures. Stainless steel is preferred for high-temperature applications, while PVC and other polymers are suitable for lower temperature ranges.

2. Sealing Mechanisms

  - Soft Seals: Soft seals, typically made from materials like PTFE (Teflon), provide excellent sealing capabilities for general-purpose applications. They offer low friction and good chemical resistance but may not be suitable for high-temperature or high-pressure conditions.

  - Metal Seals: Metal-to-metal seals are used in extreme conditions where soft seals would fail. They can withstand higher temperatures and pressures but require precise machining to ensure a tight seal.

3. Durability and Longevity

  - Wear Resistance: The materials used in ball valves must resist wear caused by fluid flow and operational cycles. Hardened metals and advanced polymers are often employed to enhance durability.

  - Maintenance and Lifecycle: Understanding the lifecycle of materials helps in designing valves that require minimal maintenance. Proper material engineering ensures longevity and reduces the need for frequent replacements.

Conclusion

The science behind ball valves encompasses fluid dynamics and material engineering, both critical to their efficient and reliable operation. By understanding the principles of fluid flow, pressure drop, and material properties, engineers can design ball valves that meet the specific needs of various applications. Whether for residential plumbing, industrial processes, or specialized scientific equipment, the proper selection and design of ball valves are key to ensuring optimal performance and longevity.
