Precision Winding Machines: Revolutionizing Industrial Production

In modern manufacturing, achieving accuracy and consistency is essential. Precision winding machines are integral to industries requiring tightly controlled winding processes for wires, fibers, and filaments. These machines ensure uniform winding, minimize material waste, and enhance production efficiency.

What is a Precision Winding Machine?

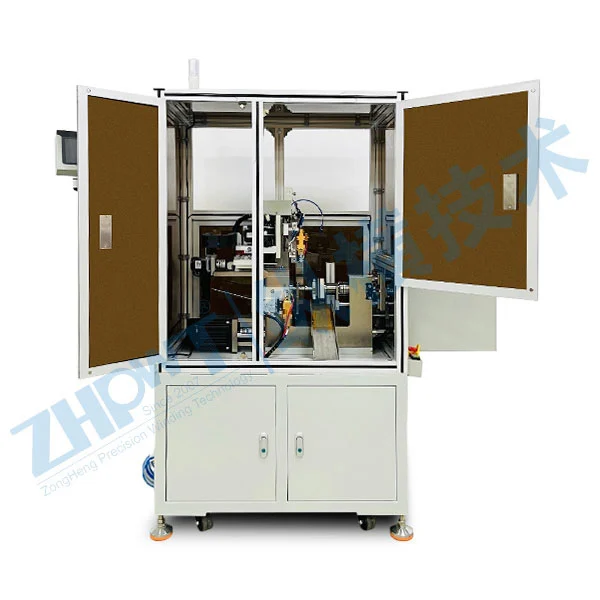

A precision winding machine is an advanced system designed to wind materials onto spools, coils, or bobbins with high accuracy. Using programmable controls, it ensures consistent tension and layer formation, preventing overlaps and uneven winding.

How Precision Winding Machines Work

These machines operate using servo motors and sensors to regulate the winding process. Parameters like speed, tension, and traverse movement are continuously monitored and adjusted to maintain optimal winding patterns.

Types of Precision Winding Machines

1. Traverse Winding Machines: Ideal for applications requiring uniform layer formation.

2. Pancake Winding Machines: Designed for flat coil winding, commonly used in transformers and motors.

3. Toroidal Winding Machines: Used for creating toroidal coils in electrical applications.

4. Bobbin Winding Machines: Best suited for textile, fiber optic, and wire production.

Advantages of Precision Winding Machines

- Enhanced Productivity: Faster winding speeds with reduced material waste.

- Consistent Quality: Precise control leads to uniform, defect-free coils.

- Versatility: Suitable for various materials and applications.

- Automated Operation: Reduces manual labor and operational errors.

- Cost Efficiency: Lower maintenance requirements and energy consumption.

Applications of Precision Winding Machines

- Electrical and Electronics: Manufacturing transformers, inductors, and motors.

- Textile Industry: Producing yarns and fibers with uniform tension.

- Automotive Sector: Creating wire harnesses and electric motor coils.

- Medical Devices: Producing precise coils for diagnostic equipment.

- Renewable Energy: Fabricating wind turbine and solar panel components.

Choosing the Right Precision Winding Machine

When selecting a precision winding machine, consider the following factors:

- Material Type: Ensure compatibility with your material.

- Winding Speed and Capacity: Choose a machine suited for your production volume.

- Control Features: Opt for programmable systems for flexible operations.

- Tension Control: Essential for delicate materials like fiber optics.

- Maintenance Requirements: Evaluate ease of maintenance and durability.

Conclusion

Precision winding machines are indispensable for industries demanding accuracy and reliability in their production processes. Investing in the right machine ensures enhanced productivity, reduced material wastage, and consistent product quality. As technological advancements continue, these machines will play an even more significant role in driving industrial innovation.
