Hydraulic Cylinders – The Power Behind Modern Machinery

Hydraulic cylinders are indispensable components in various industries, powering machinery and enabling heavy-duty operations with precision and efficiency. These devices play a pivotal role in converting fluid pressure into mechanical force. In this blog, we’ll delve into the basics of hydraulic cylinders, their types, and their key applications.

What is a Hydraulic Cylinder?

A hydraulic cylinder is a mechanical actuator that creates linear motion by using pressurized hydraulic fluid. It consists of a cylinder barrel, a piston rod, seals, and other components that work together to produce powerful force, enabling tasks like lifting, pushing, or pulling.

Types of Hydraulic Cylinders

1. Single-Acting Cylinders

  - Fluid pressure operates in one direction only, while an external force or spring returns the piston.

  - Commonly used in jacks and hydraulic presses.

2. Double-Acting Cylinders

  - Fluid pressure operates in both directions, providing more control and versatility.

  - Widely used in construction and industrial machinery.

3. Telescopic Cylinders

  - Composed of multiple nested stages, allowing extended reach.

  - Ideal for dump trucks and other applications requiring long stroke lengths.

4. Tie-Rod Cylinders

  - Designed with rods securing the cylinder ends, making them easy to maintain.

  - Common in light-to-medium-duty machinery.

5. Welded Cylinders

  - Welded construction for a compact and durable design.

  - Suitable for heavy-duty and high-pressure applications.

Key Features of Hydraulic Cylinders

1. Power and Efficiency

  - Deliver high force with minimal input, making them energy-efficient.

2. Precision Control

  - Enable precise movement and positioning in machinery.

3. Durability

  - Built to withstand extreme pressures, heavy loads, and harsh environments.

4. Versatility

  - Available in various sizes and configurations for different applications.

Applications of Hydraulic Cylinders

1. Construction Machinery

  - Used in excavators, loaders, and cranes for lifting and moving heavy loads.

2. Agricultural Equipment

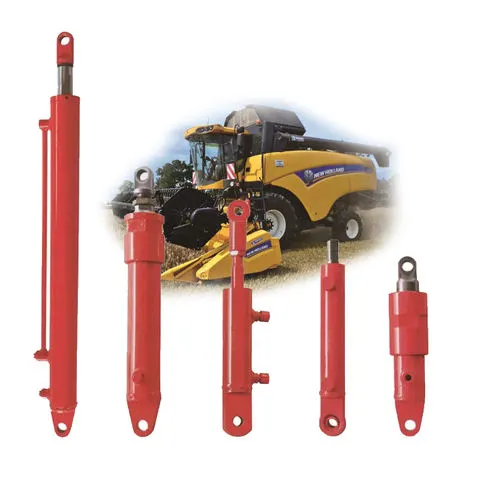

  - Found in tractors and harvesters for operations like lifting and tilting.

3. Industrial Automation

  - Provide linear motion in manufacturing and assembly lines.

4. Aerospace and Marine

  - Used in landing gears and ship steering systems for precision and reliability.

5. Automotive Industry

  - Integral to vehicle lift systems, suspension, and braking mechanisms.

Conclusion

Hydraulic cylinders are the backbone of many modern industries, offering unmatched power, control, and reliability. Their ability to perform under extreme conditions makes them an essential component in various applications. Whether in construction, agriculture, or industrial automation, hydraulic cylinders continue to drive innovation and efficiency.
