Cartridge Heaters: Versatile Solutions for Precise Heating Needs

Introduction

Cartridge heaters are a reliable and efficient heating solution used across various industries to provide localized and precise heat. These cylindrical heating elements are compact, robust, and designed for insertion into drilled holes, making them ideal for applications requiring targeted thermal management. In this blog, we’ll explore what cartridge heaters are, their working principles, and their diverse applications.

What Are Cartridge Heaters?

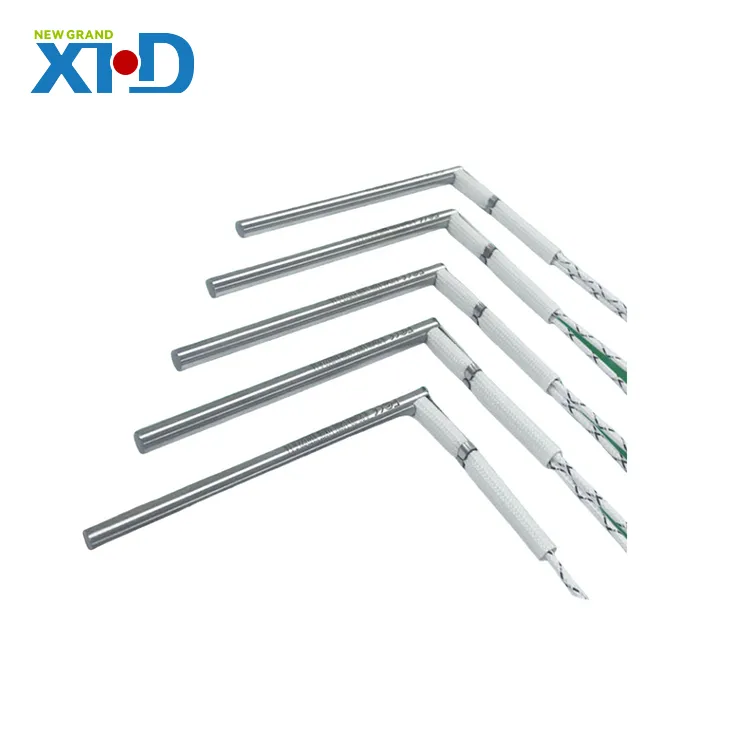

Cartridge heaters are tubular, high-temperature heating elements designed to transfer heat to a specific area. They are composed of a heating coil encased in a metal sheath, usually stainless steel, for durability and efficient heat transfer. Insulation materials like magnesium oxide (MgO) surround the coil to enhance thermal conductivity and electrical insulation.

How Do Cartridge Heaters Work?

1. Electric Heating: When powered, the resistive coil inside the heater generates heat.

2. Heat Transfer: The heat is transferred through the sheath to the surrounding material.

3. Precise Control: With proper controllers, cartridge heaters provide precise temperature regulation.

Applications of Cartridge Heaters

1. Plastic Injection Molding

  - Heats molds to precise temperatures for uniform material flow and quality parts.

2. Packaging Industry

  - Used in sealing bars, hot knives, and laminators for consistent heat delivery.

3. Food Processing

  - Keeps food equipment at stable temperatures for safe and efficient operations.

4. Medical Devices

  - Provides localized heating for sterilization and diagnostic equipment.

5. Automotive Manufacturing

  - Aids in heat application for engine components, sensors, and gaskets.

Advantages of Cartridge Heaters

- High Watt Density: Delivers significant heat in a compact form.

- Durable Construction: Stainless steel sheathing ensures long service life.

- Customizable: Tailored to specific dimensions, wattage, and voltage requirements.

- Energy Efficiency: Minimal heat loss due to precise targeting.

Conclusion

Cartridge heaters are indispensable for industries requiring efficient, localized, and reliable heat sources. Whether in manufacturing, food processing, or medical applications, their versatility makes them a preferred choice for engineers and designers.
